Robotic Cell Streamlines Part Loading, Unloading, Palletizing

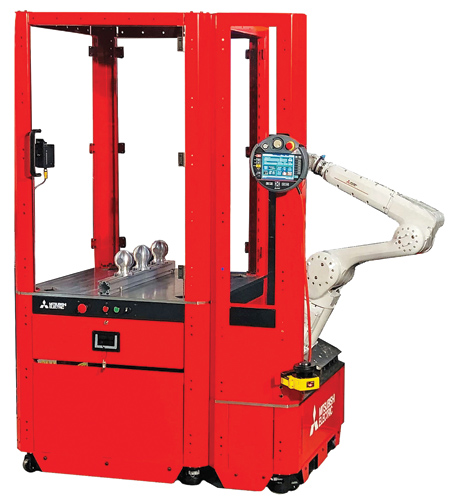

The LoadMate Plus Machine Tending Robotic Cell from Absolute Machine Tools partner Mitsubishi Electric Automation streamlines part loading, unloading and palletizing in low-to-high volume applications. "It features portability, easy set-up and programming, high performance and a safety-first design that make it appropriate for both job shops and larger scale production environments," said a spokesperson.

Mitsubishi and Absolute jointly designed the plug & play cell. It consists of a Mitsubishi industrial robot, a wheeled stainless steel base, a clear polycarbonate cell enclosure featuring a safety door with an interlock switch and a side table extension. The cell accommodates Mitsubishi 6-axis RV-series robots ranging in load capacity from 7 kg to 20 kg and reach up to 1,388 mm.

Integrating the robot cell with a CNC machine is a one-step process using a single Ethernet cable, Mitsubishi's Direct Robot Control function and the Mitsubishi M8 series control. The LoadMate Plus can also interface with other control types via remote I/O connectivity.

Built-in casters enable users to move the LoadMate cell from machine to machine. The cell enclosure is designed to handle heavy payloads and significant part momentum. Additional guarding and fencing may not be necessary when the cell is positioned correctly in tandem or in close proximity to the CNC machine. Depending on the application, the cell can be secured in position using built-in ratchet pads or an optional floor-mount latching system.

Courtney Ortner, Chief Marketing Officer at Absolute Machine Tools, said, "The Mitsubishi LoadMate Plus cell provides a cost-effective, easy-to-implement automation solution for both beginners and manufacturers already familiar with automation systems."

For more information contact:

Courtney Ortner

Absolute Machine Tools, Inc.

7420 Industrial Parkway

Lorain, OH 44053

800-852-7825 / 440-960-6911

sales@absolutemachine.com

www.absolutemachine.com
