Drilling Machine with 10" Diameter Capability

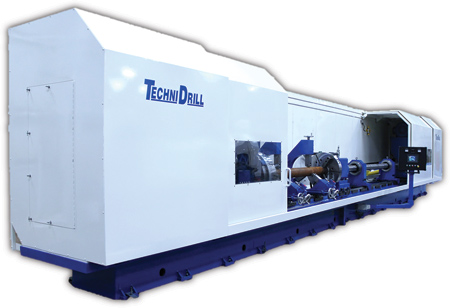

The TechniDrill TBTA-10-180 is a deep-hole drilling machine using the Boring & Trepanning Association (BTA) process. It can drill holes up to 10" in diameter from solid using the trepanning process. The machine has applications in the aerospace and oil & gas industries.

The trepanning process does not drill the entire diameter of the hole, only a ring of material on the periphery. Instead of turning all the removed material into chips, a core is left in the center of the hole. This enables the machine to drill larger diameter holes with less required horsepower.

The TBTA-10-180 is a single spindle machine with 10" (254 mm) of trepanning diameter capacity and 180" (4,572 mm) of trepanning depth. It has the capability for both a rotating tool and a counter-rotating workpiece, both of which are driven by 100 HP motors.

For more information contact:

Kays Engineering, Inc.

900 Industrial Dr.

Marshall, MO 65340

660-886-9929

info@kays-dehoff.com

www.kays-dehoff.com
