Hydrostatic Spindle Bearings

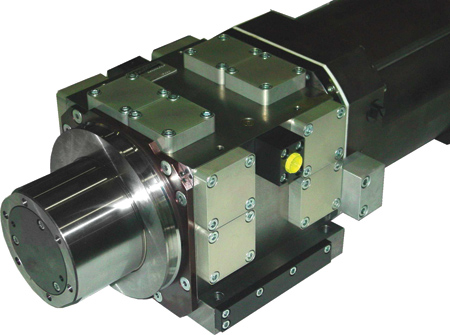

Hydrostatic high precision grinding spindle from Hyprostatik with nominal diameter for the individual part spindle 100 mm, 40 kW motor outputs and maximum speed 7,000 RPM.

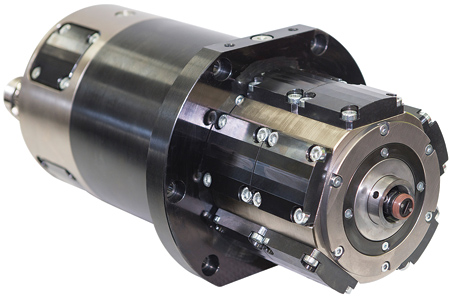

Triple bearing hydrostatic internal grinding spindle HSK 32.

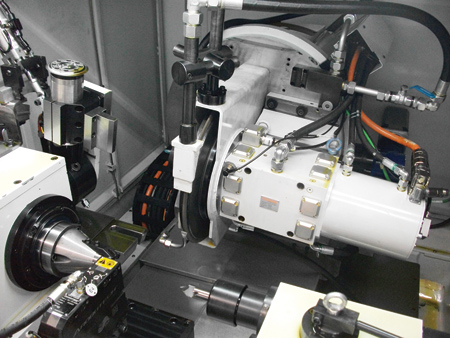

Hydrostatically supported motor grinding spindles designed for manufacturing threads with different profiles, pitches and diameters with peak performance and precision.

"Hydrostatic spindle bearings ensure maximum part precision, excellent tool life and high machine availability with low servicing costs," said a Hyprostatik Schönfeld spokesperson. "In turning, grinding or milling machines, spindle bearings with roller bearings have been used predominantly up to now. Growing demands for shaping accuracy, dimensional stability, surface quality and removal rate, however, are bringing spindles with roller bearings ever closer to their limits."

While new high quality spindle bearings with roller bearings can achieve concentricity qualities of approximately 1 µm, the running quality decreases rapidly at high stresses and speeds, the company reported. This means that the bearings in fast-turning interior grinding spindles have to be replaced after only a few months.

"Spindle bearings with roller bearings are only slightly damped," said the spokesperson. "This has direct effects on the surface quality of the part. It also means that tool working lives and the boundary cutting line are somewhat limited. In addition, fast-running spindle bearings with roller bearings frequently develop very high temperatures, through which the thermal stability of machine suffers, despite costly cooling measures. This is where hydrostatic spindle bearings come into their own."

According to Hyprostatik Schönfeld, if spindle bearings with roller bearings are compared with hydrostatic spindle bearings, hydrostatic embodiments achieve the following advantages:

  • Freedom from wear: Hydrostatic bearings are contactless and therefore free from wear. The properties remain unchanged regardless of the duration of use, stress and speed.
  • Concentricity: Depending on the spindle size, maximum speed and spindle configuration, the concentricity of hydrostatic spindle bearings and turntables is between 0.03 µm and 0.3 µm, typically 0.1 µm-and this regardless of the duration of use.
  • Damping: Ideally designed hydrostatic spindle bearings have damping that is many times greater than roller bearing spindles. In addition to longer tool lives, better surface qualities and lower shaping errors are achieved. Chattering only occurs at significantly higher cutting rates.
  • Temperature behavior: With hydrostatic bearings, frictional power only occurs in the oil. As this is transported very quickly from the bearing with less wetted surfaces, the bearing remains cool even at very high speeds. The bearing fluid is cooled outside the bearing.
  • Amortization: In high quality machines, the extra cost through using a hydrostatic spindle bearing is approximately 2% to 3%. If the machine is automated, this is even less. Advantages accrue through higher machine availability, lower servicing and tool costs, faster machining times and improved part accuracy. In a gear grinding machine, for example, a significant improvement of the grinding power by the avoidance of burn marks and patently lower shaping errors were achieved, so that an amortization period of a fraction of a year can be expected. In multishift operation, the amortization period is even shorter.

Conventionally, capillaries, meaning solid resistances, are used for hydrostatic bearings to regulate oil flows between a supply pump and the hydrostatic bags. As a result, increasingly stressed bags are assigned a reduced oil flow, while unstressed bags are assigned a higher oil flow, resulting in low stiffness of the bearing.

Instead of capillaries, however, Hyprostatik Schönfeld uses progressive volume controllers (PV controllers) with which an increasingly stressed hydrostatic bag is assigned more oil, but a destressed bag is assigned less oil. "By doing this, Hyprostatik achieves, compared with bearings with capillaries, a stiffness four to five times greater and a less viscous oil can be used, which means that maximum turning speeds can be raised by approximately 70%," said the spokesperson. "Also, due to the PV controllers, spindle bearings can be fully stressed even at very high speeds, which is not possible in solutions with capillaries. In addition, oil flow, pump pressure and oil heating are patently reduced by using a PV controller."

Hyprostatik Schönfeld works with its own computing program to help ensure that hydrostatic spindle bearings are ideally designed to stand up to static and even vibrating stresses. The data is used to modify the bearing design and oil supply, so that the best possible damping is achieved.

The high stiffness and damping of Hyprostatik spindle bearings enables balancing qualities in the range G0.04; G0.1 can be guaranteed (the smallest balancing quality according to the standard is G0.4), according to the company.

For more information contact:

Hyprostatik Schönfeld GmbH

info@hyprostatik.de

www.hyprostatik.de
