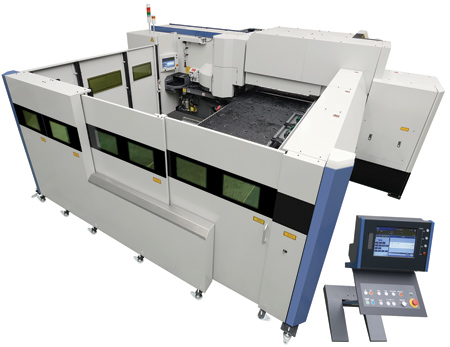

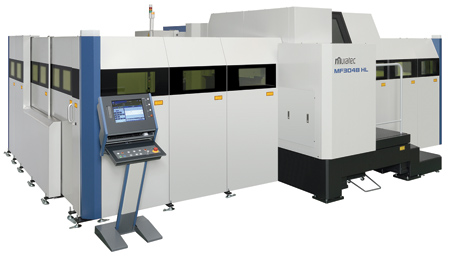

Murata Machinery USA, Inc. offers its Muratec Combination Punch Press and Fiber Laser MF3048HL. This integrated machine combines the benefits of punch operations with laser cutting technology, eliminating the need for separate set-ups or material transfers between machines.
Muratec's punch/laser combines the power of a fiber laser to offer precise cutting, punching, tapping and forming operations on a diverse range of materials. While the large turret capacity cuts down on tool changeouts, the fiber laser performs contour cutting and addresses the low-volume punch tool requirements. Added standard features like controlled punch stroke, quick change tools, scribing and tapping increase production transitions from one job to another for more flexibility and shorter production times.
"With a press capacity of 33 tons and a rated output of 4.0 kW, this hybrid machine delivers precise and efficient operations with power and speed," said a company spokesperson.
It handles a maximum sheet thickness of 1/4", making it suitable for a wide range of applications. The processing sheet size options of 4' x 8' or 5' x 10' provide flexibility to accommodate various sheet sizes. With a high hit rate of 510 HPM and a table speed of 4,921 IPM, processing is fast and efficient.
"Its processing precision of ± 0.001 inches assures exceptional accuracy and quality for punch/laser jobs with complex geometries, such as high-precision sheet metal and prototyping, especially in the automotive, aerospace and electronics sectors," said the spokesperson.
Key features of the Muratec Combination Punch Laser:
- Integrated four-station rigid tapping unit: A four-station rigid tapping unit that enhances operational versatility, efficiency and high-speed tapping operations.
- Vibration-free laser operation: The fiber laser remains securely mounted on its dedicated frame, eliminating potential vibration interference during cutting and punching operations.
- Retractable bottom dies: This function retracts forming dies when not in use. This allows the machine to perform laser cutting and punching operations to reduce the chance of scratching and catching while making adjacent punch stations available.
- Process net monitoring: Accelerates real-time monitoring and control for fiber laser operations and provides operators and manufacturing managers with valuable insights.
To further enhance the MF series, the tooling styles of Wiedemann 114 and thick spring style turrets are able to accommodate a shop's present machine's tooling inventory. This combination machine can also be seamlessly paired with unmanned automation for loading and unloading, and with the FG series, Muratec's parts sorting system that is specialized for fiber-laser technology to enhance efficiency.
