Deep Hole Drilling
April 1, 2015

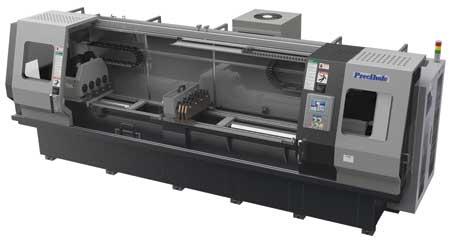

Precihole Machine Tools Pvt. Ltd. offers deep hole drilling machines with capabilities engineered to facilitate production of a variety of parts. The GVN series of single-axis gun drilling equipment includes machines with one to four spindles that can apply drills from 2 mm (0.07") to 25 mm (1") in diameter to produce holes at depths of 400 mm - 1,000 mm (16" - 40"). The largest versions can handle components up to 125 mm (5") O.D. and weighing as much as 50 kg (110 lbs.). Feedrates extend from 0-1,000 mm/min (0-40"/min), and there is a choice of 1.5 kW (2 HP) or 9 kW (12 HP) spindle power.
The GVN machines have a compact footprint and touchscreen HMI. Among available optional features are automatic component loading/unloading, variable coolant flow and up to four spindles.
All Precihole gun drilling machines feature linear motion guideways, high-pressure recirculating coolant systems, centralized automatic lubrication and full machine guarding. A full range of tools and accessories includes gun drills, guide bushes, whip guides and cone locators, as well as tool presetting and regrinding machines.
Precihole machines are exclusively imported by Absolute Machine Tools. Parts and service are available through Absolute and a nationwide network of machine tool distributors.
