High-Speed 40-Taper Drill/Mill Center

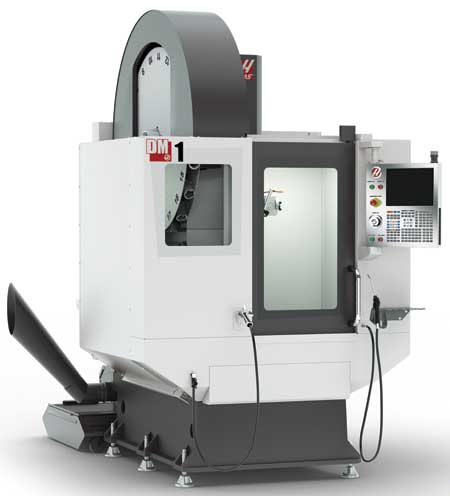

The DM-1 from Haas Automation is a small-footprint, high-speed drill/mill center with a 40-taper spindle. The machine has a 20" x 16" x 15.5" work cube and a 26" x 15" T-slot table. The 40-taper inline direct-drive spindle turns to 15,000 RPM, and allows high-speed rigid tapping, with up to four times retract speed. The spindle is coupled directly to the motor to reduce heat, increase power transmission and provide enhanced surface finishes. A 15 HP vector drive system provides 46 ft-lbs. (peak) of cutting torque for milling and boring operations.

The DM-1 provides cutting feedrates to 1,200 IPM for high-speed milling, and the machine's 18+1 side-mount tool changer swaps tools quickly to reduce non-cutting time. High-speed 2,400 IPM rapids combine with high acceleration rates to shorten cycle times and increase throughput.

For efficient chip removal, the DM-1 features steeply sloped internal sheet metal. Optional twin chip augers transport chips to exit at the rear of the machine, allowing multiple machines to be placed close together. A 45-gallon flood coolant system is standard, with options for a programmable coolant nozzle and high-pressure through-spindle coolant systems. A selection of options are available to further boost productivity, including high-speed machining software, wireless tool and work probing, 4th- and 5th-axis capability and more.

For more information contact:

Haas Automation, Inc.

2800 Sturgis Road

Oxnard, CA 93030

800-331-6746

www.HaasCNC.com
