Non-Articulated 4-Axis Robot

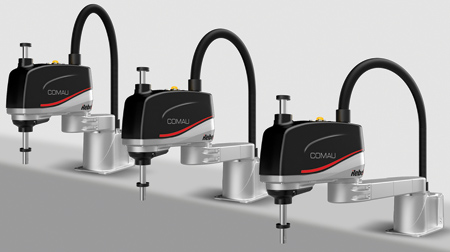

Comau has introduced Rebel-S, its own 4-axis SCARA robot, available in five different models with a payload of 6 kg and three different reaches. All models are controlled by the R1C 19" rack-mounted controller, which can be integrated into a single cabinet to control an entire line. The robots are also available in the openROBOTICS version, where the robot is directly integrated into the existing machine/line automation controlled by B&R technologies.

"The name of these new robots reflects the differences embodied by the SCARA compared with the other robots in Comau's portfolio," said a company spokesperson. "They can be considered `rebels' in the sense that they are not being articulated, they offer a variety of mounting positions and they utilize spacers - a simple yet innovative solution able to extend the robot's reach."

Rebel-S is available with reaches of 450, 600 and 750 mm. All three versions can be floor or wall mounted, while the versions with 600 and 750 mm reach can also be configured for ceiling mounting. This flexibility in mounting position is facilitated by the use of dual cabling options (either vertical or horizontal).

The difference in reach is provided by spacers, modules that enable the robot to extend its radius of action. With an extension kit composed of spacers and cables, the five models are effectively interchangeable.

"This modularity opens the opportunity to a last-second robot configuration and this means considerable savings when the customer purchases the members of SCARA's family," said the spokesperson.

Alongside its robots, Comau will offer a range of add-ons, including conveyor tracking and a plug & play vision system, as well as a series of service packages as part of its after-sales strategy.

For more information contact:

Comau LLC

21000 Telegraph Rd.

Southfield, MI 48033

888-888-8998 / 248-353-8888

www.robotics.comau.com
