High-Speed, Ultra-Compact, Dual-Axis Rotary Table

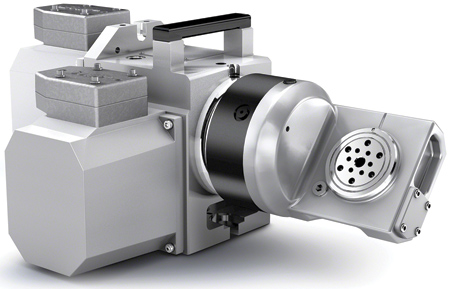

The TRT70 dual-axis rotary table from Haas Automation is designed to deliver high-speed and accurate positioning for 3+2 and full 5-axis machining of small complex parts, such as those found in the medical and dental industries.

The TRT70 uses powerful brushless servomotors to provide 60 ft-lbs. (81.3 Nm) of torque on the tilt axis and 40 ft-lbs. (54.2 Nm) on the rotary axis. Indexing speeds of 410 deg/sec on the tilt axis and 620 deg/sec on the rotary axis help ensure short cycle times. The unit provides ±120° of tilt and 360° of rotation to position parts to almost any angle for machining. The precision-ground 70 mm (2.76") platter features multiple bolt patterns and a precision through-bore for versatile fixturing, and will swing parts up to 4.0" (102 mm) diameter. The maximum platter capacity is 3 lbs. (1.4 kg).

Measuring 18.5" (470 mm) wide and 10" (254 mm) deep, the TRT70 fits into small machining centers or can be mounted on one end of a larger machine's table, freeing up the remainder for additional fixtures or vises. It is a complement for Haas Automation's new CM-1 Compact Mill or existing OM-Series Office Mills. Like all Haas rotary tables, the TRT70 can easily be removed when not needed.
