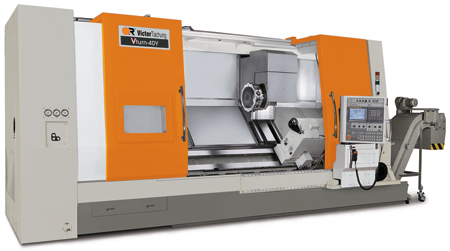

Slant Bed Turning Centers from 40" to 168"



Fortune offers new extended models of Vturn-40 (3.58" bar capacity) and Vturn-45 (4.62" bar capacity) slant bed turning centers. Four center distances of 47", 85", 127" and 168" are now available. The large spindle bore (LSB) model offers the 6.3" bar capacity option.

Features include:

  • Standard with 15" Kitagawa hydraulic 3-jaw chuck, chip conveyor, programmable tailstock, oil skimmer and air conditioner for electrical cabinet. Option up to 24" chuck.
  • 45° one-piece Meehanite slant bed. Built in technology enhances the structural stiffness and offers minimum distance from ball screw to the tool tip.
  • Box slide ways with hardness HRC55 for heavy cutting.
  • FANUC 50 HP spindle motor and 2-step gearbox enhanced cutting torque at low RPM.
  • Victor Taichung turret with wider span turret carriage upgrades structure stiffness. Milling turret (servo driven) available with VDI-50 for quick tool change or BMT-75 for high rigidity.
  • Y-axis and C-axis applications available with built-in spindle for contour milling.

For more information contact:

Fortune International Inc.

56 Veronica Ave.

Somerset, NJ 08873

888-306-9470 / 732-214-0700

sales@fortune-cnc.com

www.fortune-cnc.com
