Off-Line Part Measurement System

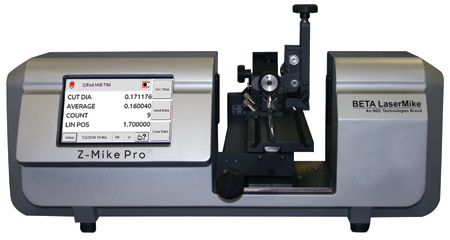

The new Beta LaserMike Z-Mike Pro from NDC Technologies is the next evolution of its off-line part measurement system for metrology applications. "The new Z-Mike Pro sports sleek, modern styling and is ready for service under Industry 4.0 with expanded connectivity, communication and control capabilities," said a company spokesperson.

Z-Mike Pro is designed to provide absolute accuracy, reliability and repeatability for dimensional measurements of outer diameter, ovality, taper, TIR, runout, effective cutting diameter and more. "Manufacturers facing increasingly tighter tolerances and the pressure to turn out precision parts can rely on Z-Mike's +/-0.5 µm accuracy and +/-0.13 µm repeatability to help them deliver superior quality products. Z-Mike Pro offers versatility across a wide range of demanding measurement applications such as rubber rollers, fluted cutting tools, plug and pin gauge calibration, shafts, pistons, crankshafts, camshafts, motor shafts, glass tubes, fuel injectors, valves, computer components and other applications," said the spokesperson.

Designed for use in both quality clean rooms and tough machine shops, the Z-Mike Pro gauge offers the following benefits:

  • No recalibration
  • Precision over the entire measurement range
  • No need to center the object to be measured
  • Measurements traceable to national standards.

The Z-Mike Pro gauge is available in two models to measure products up to 50 mm. Ethernet and USB connectivity simplifies integration into centralized production networks and other devices. An extensive line of ready-to-mount modular fixtures are available to properly hold workpieces, from simple manual fixtures to fully automated and intelligent fixtures.

For more information contact:

NDC Technologies

Beta LaserMike

8001 Technology Boulevard

Dayton, OH 45424

937-233-9935

www.betalasermike.com

IMTS 2018 Level 3, Booth E-135911
