Family of Shaft Measuring Systems

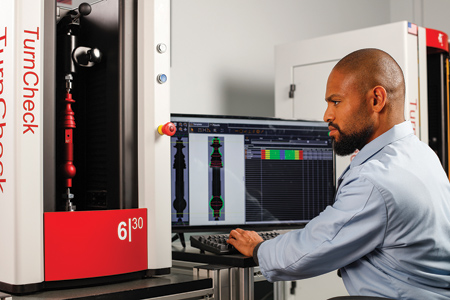

QVI TurnCheck Series 6

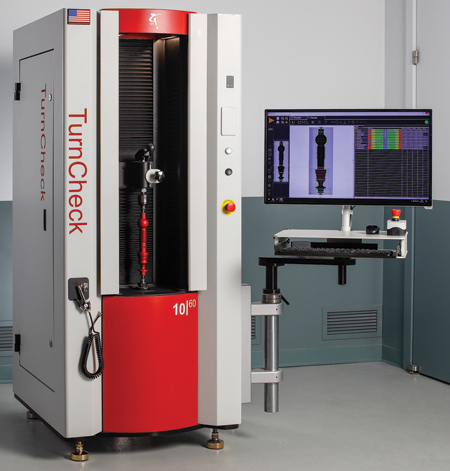

QVI TurnCheck Series 10

Quality Vision International (QVI) announced its precision optical instruments for measuring shafts and other cylindrical parts, QVI TurnCheck.

"QVI TurnCheck systems address the major sources of measurement uncertainty found in shaft measurement today by focusing on advanced optics, thermal stability and ease of use," said a company spokesperson.

The illumination system found in TurnCheck systems is designed to produce highly collimated light with a constant wavelength, eliminating the wrap-around effect on turned parts. The receiving optics are fully telecentric with each element designed to eliminate distortion. The result is a crisp, uniformly magnified image across the entire field of view, with no edge effects or exclusion zones.

TurnCheck systems are designed to deliver accurate measurements in shop floor conditions where vibration and temperature variation are common. Careful consideration was taken in selecting materials to allow the design of TurnCheck systems to mitigate the effects of thermal variation found in shop floor environments.

TurnCheck system software is engineered to be intuitive and intelligent. There is no need to adjust lighting, focus or image tools - the system optimizes these features automatically. Simple controls, easy loading and unloading, and intelligent tools let the operator focus on what they want to measure, rather than how they should be measuring it, allowing for fast set-up time without the need for extensive operator training.

Designed and manufactured in the U.S., TurnCheck systems are offered in three different model ranges to accommodate a range of parts, up to 1,200 mm in length.

For more information contact:

Quality Vision International Inc.

850 Hudson Ave.

Rochester, NY 14621

585-544-0450

info@qvii.com

www.qvii.com/TurnCheck
