5-Axis Milling/Turning with Integrated Cryogenics Technology

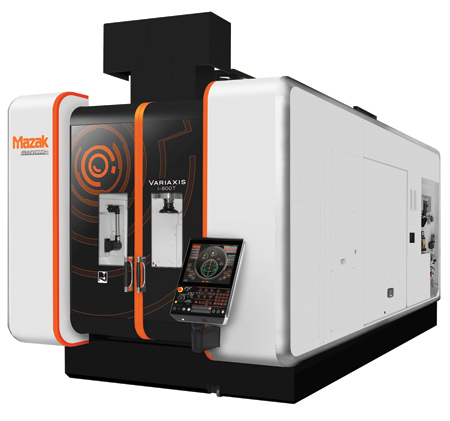

Mazak's VARIAXIS i-800T Multi-Tasking Machine was developed specifically to enhance milling operations and boost productivity - especially for manufacturers in the aerospace industry. With full 5-axis milling and turning capabilities along with integrated liquid nitrogen cryogenics technology, the machine is designed to provide high processing efficiency for complex aerospace components, as well as prevent the detrimental white layers typically generated when machining parts from tough materials such as titanium, nickel, Invar and other exotics.

The machine features a CAT-50 spindle available in 5,000/10,000/15,000 RPM speeds. Tool storage capacities from 30 to 120 tools offer high flexibility.

The machine's trunnion-style tilting table and multitasking capability allows users to reduce the inaccuracies that occur when moving parts across multiple workstations, eliminate work-in-process inventory and increase overall throughput.

With added cryogenics, the VARIAXIS i-800T also increases cutting tool life in addition to eliminating part surface white layers. Mazak's cryogenics freeze cutting tools from the inside out and keeps their cutting tips/edges in a frozen state while workpiece materials remain in an ambient one. In doing so, zero heat or thermal affects transfer into workpieces so they maintain their base material integrity. The system also facilitates faster machining speeds and feeds, helps prevent burrs and contributes to the reduction of overall cost per part because processes to remove white layers become unnecessary.

"As with all Mazak technology, we developed the VARIAXIS i-800T with cryogenics to accomplish one key objective: further improve the performance and productivity of our customers' overall part processing operations," said Dan Janka, President, Mazak. "We collaborated with cryogenics company 5ME to ensure our particular system would truly enhance machining operations and benefit our customers. And we have succeeded. Aerospace manufacturers stand to save millions of dollars with the elimination of the processes, intense labor and capital equipment involved with the removal of white layers from parts after they have been machined."
