Exact Metrology, a comprehensive metrology services provider, recently completed a job at Chicago Jet Group. Located in Sugar Grove, IL, Chicago Jet Group specializes in aircraft acquisition, aircraft management, charter services, pre-purchase evaluation, aircraft avionics, aircraft consulting and aircraft maintenance. The company was retrofitting older Dassault Falcons avionics and needed a CAD model of the panel to see how it would fit.

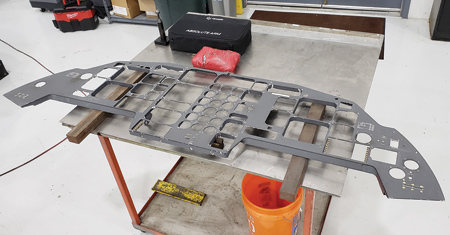

Joe van der Sanden, Application Engineer from Exact Metrology, scanned the panel with an 85 series Hexagon Romer Absolute Arm. The Absolute Arm 7-axis delivers tactile probing and laser scanning in an ergonomic package.
"It is the best choice for ease of movement and ease of measurement," said an Exact spokesperson. "The flagship RS5 laser scanner offers high-speed 3D scanning of surfaces and features on a wide range of finishes and materials with less investment than the RS6. Furthermore, the RS5 laser scanner features a wide and horizontally-oriented laser scan line and fully-automatic exposure settings, making general purpose scanning functionality simple to apply regardless of application. In addition, with mid-range width at 115 mm, the laser scanner line of the RS5 makes digitizing large surfaces simple and quick."
The RS5 can be easily removed from the arm, allowing easier and safer access to touch probing functionality in hard-to-reach areas. Due to repeatable mounting, it can be remounted without recalibration. Through the on-wrist OLED display screen of the Absolute Arm 7-axis, the RS5 allows for measurement feedback and settings adjustment at the point of measurement for a clear improvement to workflow productivity.

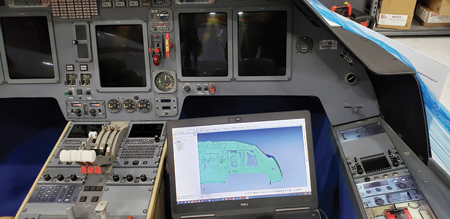

Then, dimensions were obtained in Polyworks Inspector. The Polyworks software suite covers the complete product development cycle, from part and tool design and prototyping down to final inspection of assembled parts. Polyworks Inspector is the industry-standard toolbox for product engineering, assembly guidance and final inspection, according to the company.

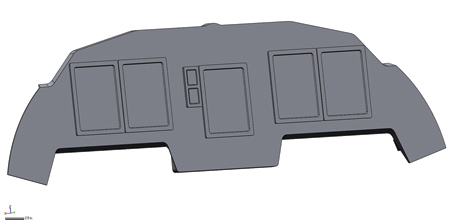

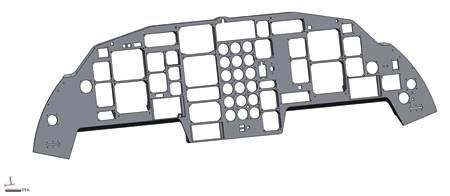

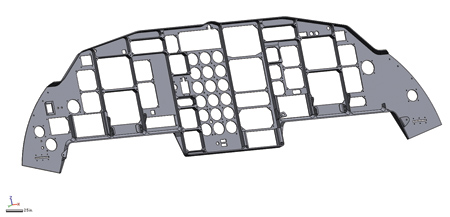

Reverse engineering was performed using Geomagic Design X. This software combines history-based CAD with 3D scan data processing and enables the creation of feature-based, editable solid models compatible with existing CAD software. Geomagic Design X allows users to reuse existing designs without having to manually update old drawings or re-measure and rebuild a model in CAD. This software is easy to learn and use, since it uses familiar history-based tools found in all major CAD products.
Chicago Jet Group was pleased with the work performed by Exact Metrology and said they would be happy to work with them again. A senior avionics technician at the company said, "This will save us months of measuring and drafting."
Exact Metrology is ISO, AS9100 Certified as well as FFL and ITAR Registered.
