A New Approach to 3D Printing a Yacht Hull Mold



Thermwood recently printed several sections from a 51' long yacht hull mold to demonstrate how only a single mold may be needed for the manufacture of larger vessels, such as yachts.

The printed sections of this test mold are made of carbon fiber reinforced ABS from Techmer PM. ABS was chosen because of its physical properties and relatively low cost compared to other reinforced thermoplastics.

The Story up to Now

Thermwood has already 3D printed a full size pleasure boat master pattern that has been used to produce multiple production boat hull molds. "While this demonstrated the value of additive manufacturing (AM) small boat tooling, much larger vessels, yachts for example, require a different approach," said a company spokesperson. "In these instances, since only a single mold is needed, it is desirable to print the mold itself rather than print a plug or pattern from which multiple production molds can be made."

The Demonstration

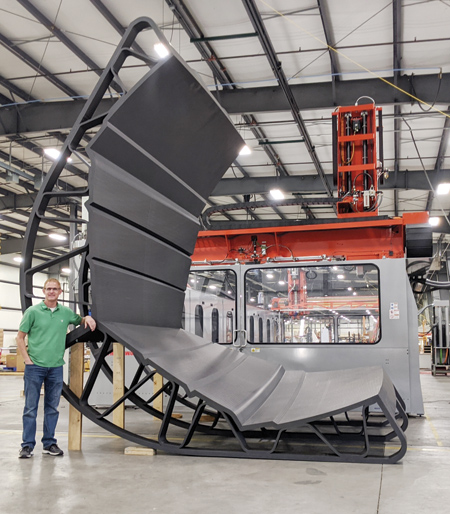

To demonstrate to the industry how this might work, Thermwood printed a 10' section from a 51' long yacht hull mold. This rather unique mold design was specifically developed for AM. It is printed in sections, each about 5' tall. These printed sections are then bound together both chemically and mechanically using high strength polymer cables into two mold halves. The two mold halves then bolt together to form a complete female mold for the yacht hull.

The Process

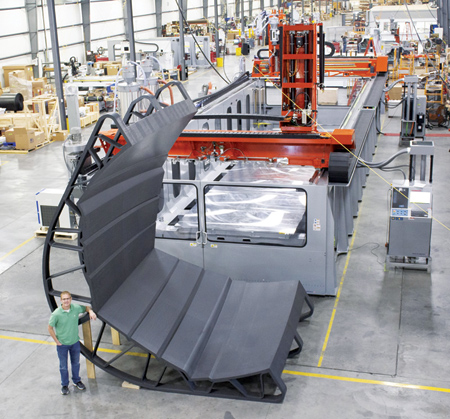

There are several interesting aspects to this design. First, each mold section has a molded-in rocker. When the mold is fully assembled, it rests on the floor on these rockers. At this point, the mold can be rolled over to tilt about 45° to either side, like a giant rocking chair. This allows for easier access during the layup process. A set of molded wedges are clamped to the rockers to hold the mold in the desired position. Once the hull has been laid up and fully cured, the mold is rolled to level and the printed wedges are clamped to both sides, holding them level. Then the two mold sides can be un-bolted and slid apart to release the finished boat hull.

The test pieces Thermwood printed show that this approach will work in practice. The printed sections of this test mold are made of carbon fiber reinforced ABS from Techmer PM.

Certain thermosets will work directly on the ABS molded surface using just traditional mold release practices. However, other thermoset materials are based on solvents that can chemically attack the ABS polymer.

To prevent this, Thermwood has experimented with several protective coatings including traditional mold gel coats. While virtually all coatings tested worked at room temperature, large thermoset molds often experience some heat as a result of the exothermic reaction that occurs during the thermoset curing process. Thermwood tested each of the coatings at 200 °F and found that some worked at both room and elevated temperature, while others that worked at room temperature did not work well at the elevated temperature.

While it appears that this approach will work today for certain thermosets, the ideal would be to develop a low cost polymer that is chemically resistant to the other thermoset solvents and eliminate the need for a protective coating.

The Fine Details

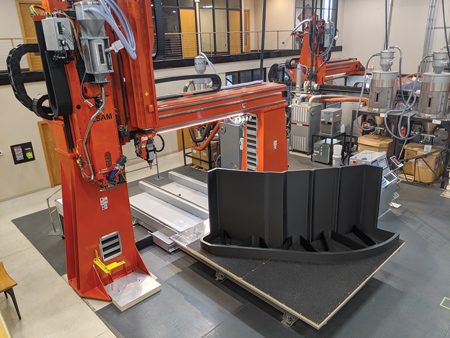

These demonstration pieces were printed and trimmed on Thermwood's 10' x 10' LSAM MT, the smallest and lowest cost AM system currently available from Thermwood. The entire mold section, made of four printed pieces, weighs 4,012 lbs. and required 65.5 hours to print. The initial idea was to use this as the centerpiece of Thermwood's AM trade show presentation. However, with the cancellation of trade shows, it has become a showpiece for visitors and prospective customers at Thermwood.

The Bottom Line

"This demonstration shows that, if you need a really large part, you do not necessarily need a really large machine," said the spokesperson. "With a little imagination and some creative engineering, really large structures can be made, even on smaller, lower cost AM systems. While the LSAM MT is not all that small, it does fit the needs of a lot of companies that would like to make larger parts but cannot quite handle Thermwood's really large systems."

For more information contact:

Thermwood Corporation

904 Buffaloville Road

Dale, IN 47523

800-533-6901

sales@thermwood.com

www.thermwood.com
