Milling Cutter with Round Insert

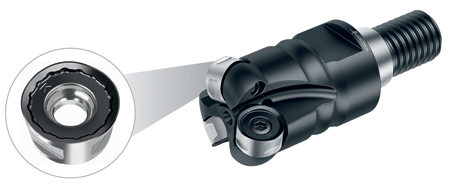

Walter M2471 copy milling cutter with round insert

The M2471 milling cutter from Walter, with an indexable round insert, features a double-sided round insert with eight useable cutting edges. Its technical features, sintered design and eight useable cutting edges help reduce cutting material costs by up to 20%.

This system, with diameters of 0.98" (25 mm) with parallel shank or ScrewFit modular interface, is suitable for face and copy milling steel, stainless steels and materials with difficult cutting properties. Indexing using the flank face of the indexable insert allows simple, safe handling. Walter offers this new indexable insert in geometries of G57 for medium machining conditions and K67 for good machining conditions. It is also available in Tiger·tec Silver PVD grades WSM35S and WSP45S, boosting tool life.

"Suitable for the aerospace and energy industries, the M2471 milling cutter offers high metal removal rates even on low-performance machines due to its soft cutting geometries and positive cutting characteristics," said a company spokesperson. "It brings all the benefits of single-sided round inserts to double-sided round insert cutting. The insert and body are designed so that their overall stability is guaranteed during use of all eight cutting edges."

For more information contact:

Walter USA LLC

N22 W23977 RidgeView Pkwy West

Suite 100

Waukesha, WI 53188

800-945-5554

www.walter-tools.com/us
