Robot-Based Press Automation Solution

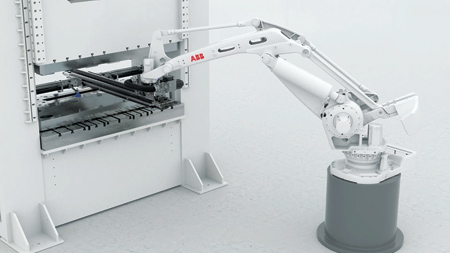

ABB has expanded its IRB 760 industrial robot range with the launch of the IRB 760PT. "Aimed at press automation applications in the automotive industry, the IRB 760PT is a flexible press tending solution offering 25% faster cycle times compared to other robot-based press automation solutions," said a company spokesperson.

To help eliminate the risk of potential interference between the robots and the press, the IRB 760PT features a revised design that reduces the interference in the robot's fourth axis. This allows the robots to move freely without colliding with equipment such as press clamps, with no change to the overall working area and the robot's freedom of movement.

"Capable of handling loads up to 450 kg, the IRB 760PT reduces the time, cost and disruption associated with repurposing dedicated press tending machines," said the spokesperson. With the ability to automatically change tooling, the IRB 760PT can be quickly adapted and reprogrammed to handle new products without the need for re-engineering.

The IRB 760PT is the fundamental component of the IRB 760FX and the IRB 760 Twin Robot Xbar.

The IRB 760FX is the result of the combination of the IRB 760PT and a linear 7th axis. The IRB 760FX offers the high flexibility needed in those press automation applications with large and medium size panels and special processes such as part reorientation, tilting and part separation.

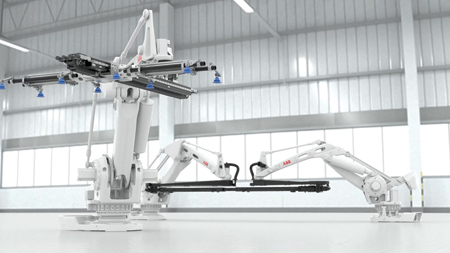

Two IRB 760PT robots can also be combined to work in tandem across 10 axes, to create the IRB 760 Twin Robot Xbar (TRX). "This is the fastest robot-based solution on the market for loading and unloading presses with long inter-press distance without the need for press modification," said the spokesperson. With a production output rate of up to 16 parts per minute, the TRX is suitable for high-speed press automation applications.

The IRB 760PT features a 3.18 meter reach, which when coupled with a linear seventh axis, or with the Twin Xbar system, avoids the need to reorient parts between consecutive stamping operations. This helps users optimize available space and save costs on investing in dedicated press automation.

ABB's StampWare software is available on the robot's FlexPendant for improved simplicity, flexibility and cost effectiveness. StampWare includes a graphical programming wizard that decreases the time needed to train the operator and robot programmer to enable the robot solution to be up and running quickly.

The IRB 760PT is also designed to reduce the cost of ownership. "Built to automotive industry standards, the IRB 760PT's robust and rigid design ensures high uptime with features such as integrated process cabling and ready availability of spares helping to minimize maintenance costs," said the spokesperson.

"We have reinforced our press automation portfolio with our fastest ever press tending robot. Our new IRB 760PT not only offers optimized speed and die interferences in press tending applications, it is also a flexible and reliable solution that can be implemented quickly and can easily be repurposed to handle changing future requirements," said Antti Matinlauri, Head of Product Management for ABB Robotics.

For more information contact:

ABB Robotics, Inc.

1250 Brown Road

Auburn Hills, MI 48326
