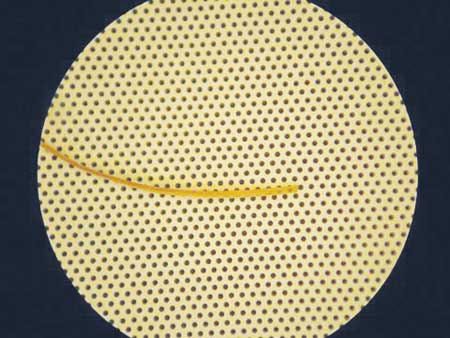

Holes drilled in ceramic in comparison with a human hair.

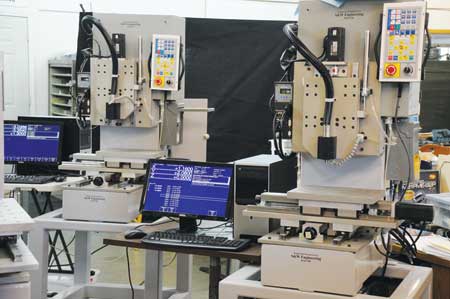

S & W Engineering specializes in ultra precision CNC 3- to 6-axis milling machines for a variety of applications.

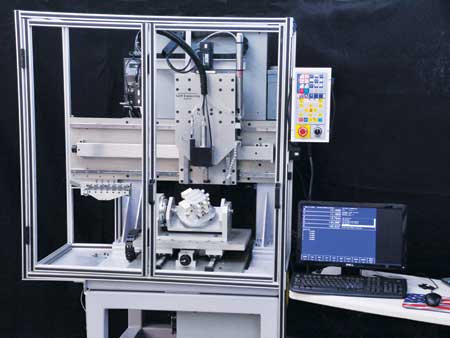

For true simultaneous 5-axis machining, a 4th and 5th axis trunnion has a resolution of 1 million increments per revolution (1.3 arc seconds) with zero backlash.
S & W Engineering specializes in ultra precision CNC 3- to 6-axis automated and robotic milling machines for a variety of applications. Custom automation configurations are available, such as pick and place.
The Windows 7 based CNC controller with Ethernet interface has a built in PLC that can be programmed with sub-routines and macros to perform custom automation. Communication between the CNC controller and the PLC is fiber optic. A dedicated control panel provides all common milling machine functions. Standard G- and M-codes are executed.
"The Incredible Machine may look similar on the outside to other machines, but that is where the similarities end," said a company spokesperson. "Over 37 years knowledge of solving tough problems goes into its building. Proprietary to the Incredible Machine is a special internal casting that kills harmonic resonance and adds structural integrity to the entire system. Top of the line components and precision assembly techniques allow the S & W Engineering machines to hold high tolerances and operate reliably for many years."
A variety of options are available to match the machine to the application. Options include:
- Precision spindles for speeds up to 60,000 RPM with manual change, quick change and full automatic tool change
- Spindle runout to +/- 1 micron
- Auto tool set touch off pad allows tool lengths to be measured automatically with accuracy and 50 grams of sensitivity for drill bits or cutters as small as a human hair.
- Servo System options allow linear resolutions from .000017" to .0000002"
- For true simultaneous 5-axis machining, a 4th and 5th axis trunnion has a resolution of 1 million increments per revolution (1.3 arc seconds) with zero backlash
- Digitizing
- Copy and cut 2D and 3D shapes turn a milling machine into a copy machine.
The Incredible Machine can also be fitted for precision ultrasonic cutting, ultrasonic welding and laser cutting. Applications include shoe making in which the machine is used to ultrasonically cut and or weld components such as urethane air compartments of shoes. Ultrasonically welding layers of fabric eliminate stitching while creating an artistic weld for sport apparel and sports equipment. It also provides laser machining in metal.
