Evaluation Electronics System for Measuring



HEIDENHAIN has announced the launch of its new QUADRA-CHEK 3000 evaluation electronics system. "It is the perfect complement for high-precision measuring machines, and with its sleek industrial design, makes it suitable for the shop floor or clean room environments," said a company spokesperson.

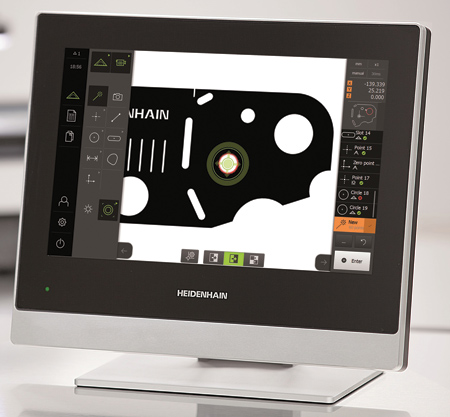

The QUADRA-CHEK 3000 is operated via its capacitive touchscreen that is suitable for multi-touch and gesturing. The sensitivity can even be adjusted so that the unit can be operated while wearing laboratory gloves. The front glass is chemically hardened, and is very robust and resistant to scratches.

"Utilizing modern video tools that have, up to this point, only been available in a PC format, the QUADRA-CHEK 3000 allows operators to intuitively capture and analyze images through the camera on measuring microscopes and video measuring machines (VMMs). It can also be used in crosshair based optical comparators at this time," said the spokesperson.

The QUADRA-CHEK 3000 has simple and intelligent video tools that are used to measure part features quickly and objectively. The many options available for customizing operation make the QUADRA-CHEK 3000 user-friendly. They range from the language setting for the user interface to the output of measuring results. The measuring results can be printed out on paper or stored locally or centrally on a server as a PDF file.

With a complete overhaul of the operating system, communication interfaces and user interface, the QUADRA-CHEK 3000 is the next evolution of QUADRA-CHEK.

For more information contact:

HEIDENHAIN Corporation

333 E. State Parkway

Schaumburg, IL 60173-5337

847-490-1191

www.heidenhain.us
