Precision Rotary Stages



ALIO Industries offers Hybrid Hexapod technology designed to enable next-generation manufacturing processes. ALIO has also developed TRUE NANO precision rotary stages for high precision rotary motion. ALIO's line of rotary stages continues to expand as the company works with each customer on a one-to-one basis to provide customized motion control solutions.

Mechanical Rotary Stages

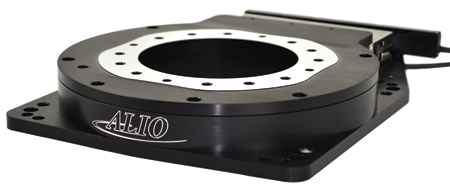

ALIO's mechanical bearing rotary stages have been designed with crossed roller bearings for improved stiffness for offset loads and rotational precision. "Integrated with servo torque frameless motors, these stages can handle applications where the mass and acceleration needs are extreme, while still maintaining nanometer-level precision performance," said a company spokesperson.

Standard ALIO rotary stages have 0.2 arc-second repeatability using ALIO supplied motion controllers. "Standard mechanical crossed roller bearings are rated at 13 to 20 microns of radial and axial run-out, with optional run-outs of certain models below 5 microns," said the spokesperson.

The mechanical bearing rotary stage family has multiple motor sizes to meet duty cycles as well as mass and acceleration needs from 80 mm to 300 mm in diameter. Vacuum rotary union options are available on the inner diameter for mounting a vacuum chuck.

Low Angle Mechanical Rotary Stages

ALIO has also designed mechanical bearing rotary stages with angular contact bearings and featuring a compact design. Integrated with servo ironless motors, these stages best fit metrology applications where small angular adjustment is needed with nanometer-level precision performance.

Air Bearing Rotational Stages

When tight run-out precision motion is needed, manufacturers can choose from ALIO's continually growing line of air bearing rotary stages. "Whether it is exceptional stiffness or cost-effective motion that is the priority, ALIO can offer a variety of options to meet the needs of today's nano-precision applications," said the spokesperson.

Dual Axis Rotary Systems

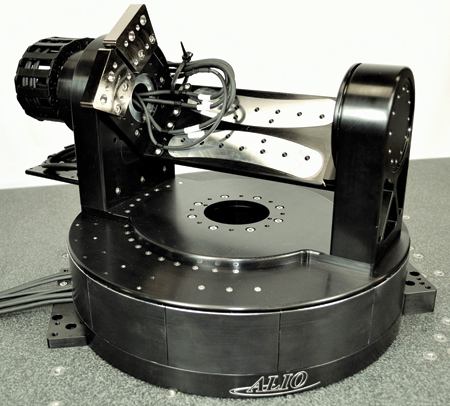

ALIO's two-axis systems are designed around the customer's mass with variable counterbalance, cable guidance and cable and air feed-through capabilities. With hard stops allowing for ±110 and ±170 degrees of rotation for nearly unlimited part access on the horizontal axis, ALIO's dual axis rotary systems exhibit angular travel ±180 for the rotation about the vertical axis.

Two-Axis Gimbal

"Incorporating ALIO's industry-leading torque ratings, the company's two-axis gimbal rotary systems are capable of high rotational speeds while maintaining the stand-out precision levels expected from ALIO Industries' systems," said the spokesperson. "Metrology, laser processing, additive manufacturing and many other industry sectors have benefited from these ALIO products, and air purge is incorporated for contaminant protection and longer life. Internal cable and airline routing provide a clean finished product."

AZ-EL Rotary Assembly

"ALIO Industry's AZ-EL rotary assembly systems also incorporate the company's enhanced torque ratings and are capable of high rotational speeds while maintaining the precision levels synonymous with any ALIO motion control systems," said the spokesperson. "As with the 2-axis gimbal system, the AZ-EL rotary assembly systems are used in metrology, laser processing, additive manufacturing and numerous other industry applications."

For more information contact:

ALIO Industries

5335 Xenon Street

Arvada, CO 80002

303-339-7500

sales@alioindustries.com

www.alioindustries.com
