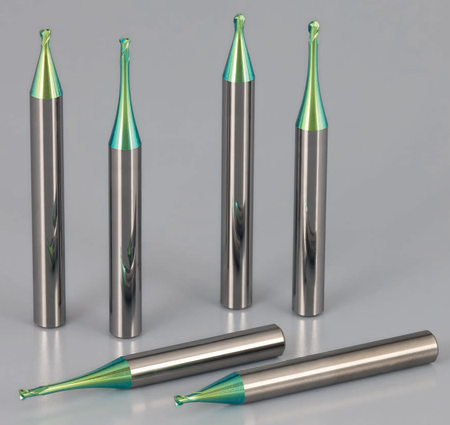

Micro End Mills for Challenging Materials



Emuge Corp. offers new Micro End Mills for a wide range of applications such as die and mold, medical and more. The Micro End Mills feature a patented neck design with up to 10x diameter, enabling reach into deep contours. For optimal machining performance, a high radial bending strength withstands alternating stress on the cutting edge and relieved neck.

The new Emuge end mills offer HSC finishing of 2D and 3D contours, and are offered in square, ball nose and torus end types. Featuring a short, stable cutting geometry, the end mills are available in solid carbide and CBN designs.

The Solid Carbide Micro End Mills are designed for high precision machining applications up to 55 HRC, and can machine small engravings, electrodes, components and cavities with varying depths. For heat and wear resistance, the end mills have a PVD applied thin film ALCR coating for long tool life. Ball Nose and Torus Solid Carbide End Mills provide high accuracy dimensional tolerances of ±5 µm. The solid carbide end mills are available with neck lengths of 2.2 x d1, 5 x d1 and 10 x d1 and a cutting diameter of 0.2 to 2 mm.

Emuge CBN Micro End Mills offer increased tool life for high precision, accurate machining applications up to 66 HRC. The end mills are designed to produce highly polished surface finishes without the need for rework. The CBN Micro End Mills are available with neck lengths of 1.5 x d1, 3 x d1 and 4.5 x d1 and a range of cutting diameters from 0.3 to 2 mm.

For more information contact:

Emuge Corp.

1800 Century Drive

West Boylston, MA 01583-2121

800-323-3013

www.emuge.com/products/end-mills/micro
