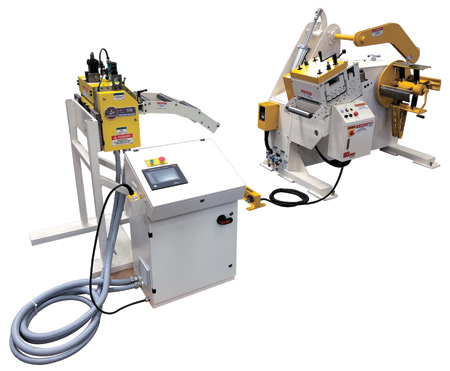

COE's straightener-reel combination paired with a ServoMaster feed offers an economical solution for light gauge applications.
COE Press Equipment offers a coil straightener and reel combination, an economical solution for stampers and roll formers processing light gauge materials for components such as brackets, hinges, moldings and more.
"Combining unwinding and straightening in a single machine, these systems can be paired with a COE ServoMaster 1 or 2 servo roll feed to deliver a complete press feeding line with excellent control and features at a value price," said a company spokesperson.
These systems can process MCRS, aluminum and stainless in thicknesses from 0.32" to 0.125" and widths from 3" to 12", depending upon the material thickness. It can handle coil weights up to 4,000 lbs. and achieve line speeds up to 50 FPM.
The systems are offered with right to left configuration and are powered with 440 Volt AC. The straightener features nine 1.97" power-driven rolls with 3.30" diameter entrance pinch rolls and a photo loop sensor.
The reel, with four-pad mandrel construction and four coil keepers, handles a coil O.D. of up to 48" and a coil I.D. from 19" to 20.5" using a hand crank expansion. It features an air-operated hold-down arm and a mechanical drag brake.
The value of this combined straightener-reel machine is enhanced by COE's ServoMaster 1 or 2 Roll Feeds, which feature ServoMaster Touch controls that can integrate with press controls to provide a complete and compact controls system with advanced functions that can be executed by the job recipe at the touch of a button.
The combination straightener-reel systems, as well the ServoMaster roll feeds, are part of COE's Express Delivery program and can be purchased at the company's Online Store. COE stocks a selection of equipment so that customers can have a machine shipped within only two business days of the order.
