Rigid 5-Axis VMC

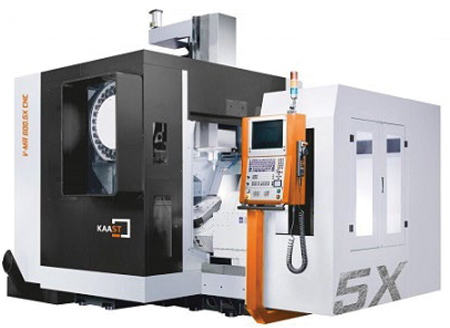

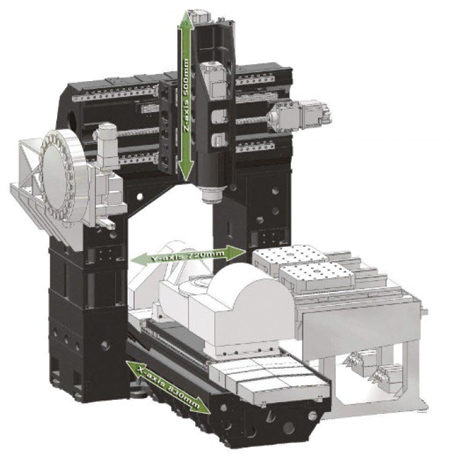

KAAST Machine Tools, Inc. offers the V-Mill 600.5X, a 5-axis CNC vertical machining center (VMC) that utilizes a massive gantry structure consisting of a base frame, double racks and stable crossbeam to help ensure rigidity and cutting performance.

This model also features cooled ballscrews combined with high quality linear roller guides and a powerful, high-speed spindle with ceramic bearings for enhanced milling surface. The generously sized worktable diameter of O600 mm (23") is capable of supporting up to 400 kg (880 lbs.).

The KAAST V-Mill 600.5X CNC features T-shape machine structure with matching column base width. The table is independently installed on the base and is fully supported through the entire stroke. This machine offers high speed for increased stability and high precision in mold and die machining. The structural portions of V-Mill 600.5X CNC are manufactured from high quality cast iron, stress relieved and heat treated for deformation-free performance.

A 30-tool magazine for flexible milling and drilling applications is a standard feature on the V-Mill 600.5X. It can accommodate BT-40 shank and includes a precision CAM drive that achieves ± 0.08 mm (0.0032") positioning accuracy. Tool changing is a fast, smooth, stable motion and the tool change arm is completely waterproof, preventing coolant from entering the arm during use. Users also have the option of adding a pallet changer to avoid the downtime associated with loading and unloading.

For more information contact:

KAAST Machine Tools, Inc.

3 Merion Terrace

Aldan, PA 19018

610-441-7317

www.kaast-usa.com
