Real-Time Bar Feeder Vibration Detection and Control

"In the precision-driven world of CNC machining, material loading with bar feeder technology can be essential for process automation-but automation without real-time control can quickly lead to scrap, downtime, and equipment damage," said a Caron Engineering spokesperson. "Caron Engineering's DTect-IT product features robust vibration detection and monitoring capabilities designed to identify and respond to excessive bar feeder vibration before it impacts part quality or machine health."

Bar feeders play a critical role in automated lathe operations, but imperfections in bar stock often go unnoticed until they cause costly issues. Material inconsistencies, alignment problems, and excessive vibration can result in:

• Dimensional inaccuracies
• Compromised surface finishes
• Increased machine wear and unplanned downtime
• High scrap rates.

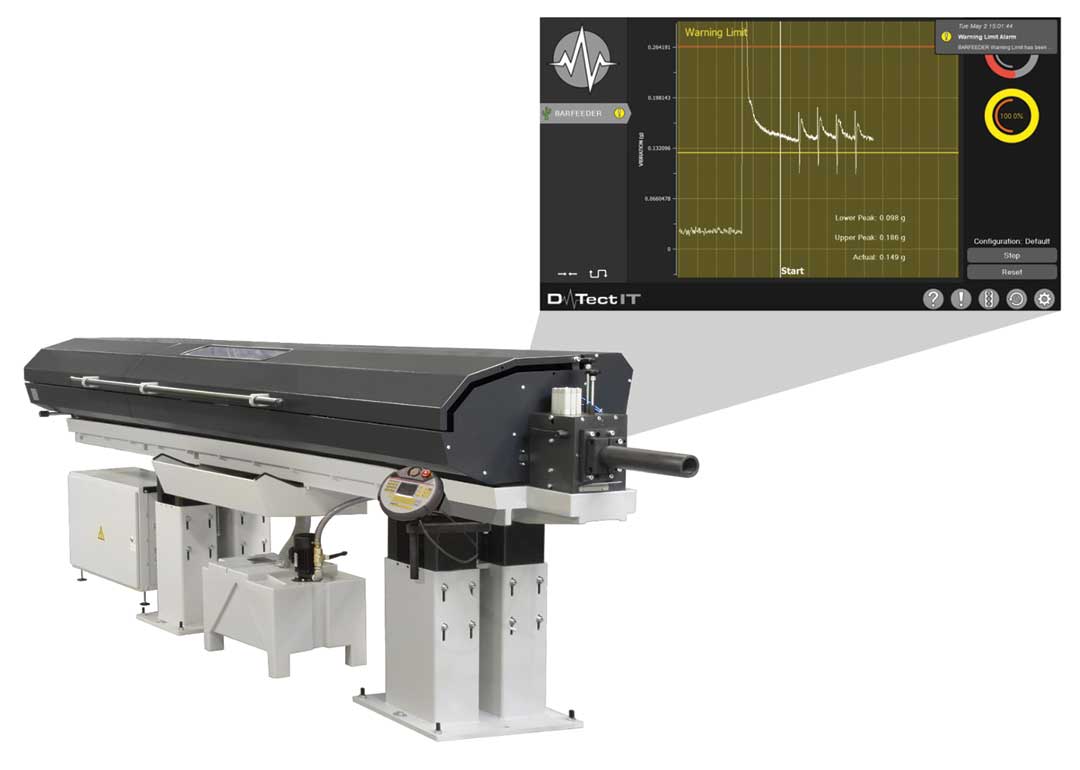

DTect-IT is designed to solve this challenge with a real-time monitoring and correction system that detects excessive vibration at the spindle and takes immediate corrective action-before part quality is affected.

Real-Time Vibration Monitoring and Automatic Correction

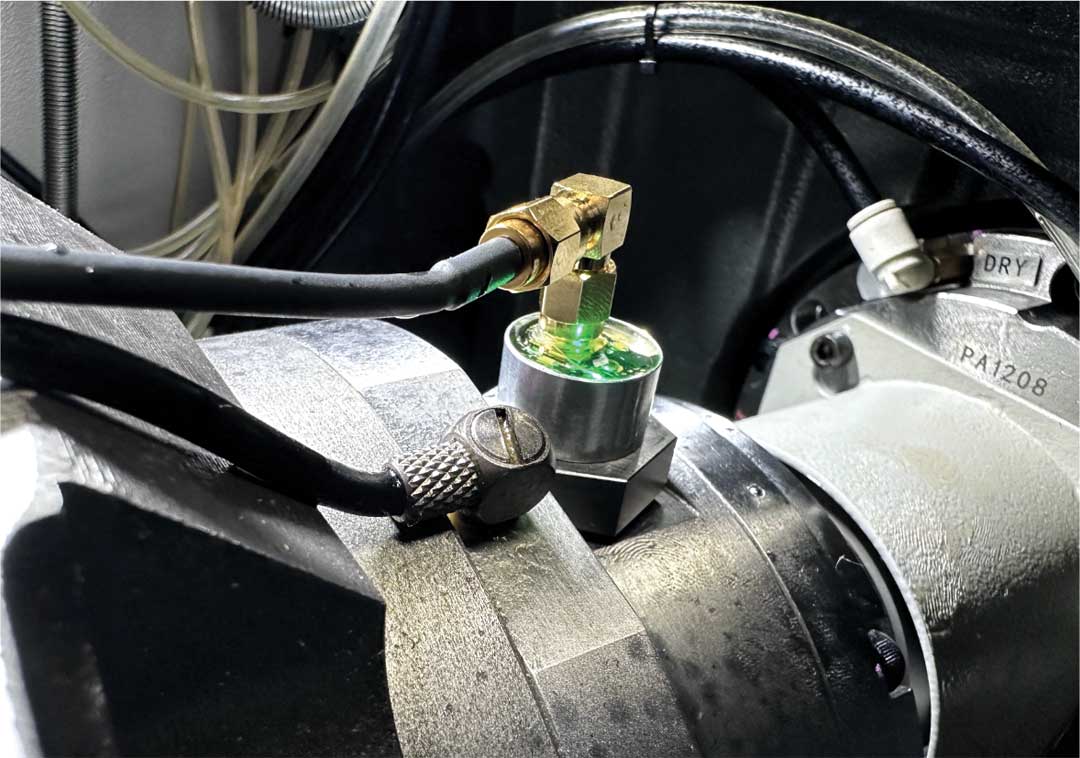

DTect-IT uses a high-resolution vibration sensor mounted on the main spindle to continuously monitor vibration signals during cutting. When vibration exceeds user-defined thresholds:

• Automatic spindle RPM adjustments: The system signals the CNC to reduce spindle RPM incrementally until vibration falls within acceptable levels-keeping the process within tolerance and preserving part quality.
• Emergency stop capability: If excessive vibration cannot be corrected through RPM adjustments, DTect-IT commands the CNC to stop, preventing equipment damage and unnecessary scrap.

Key benefits and features:

• Customizable vibration thresholds-Set user-defined vibration limits to trigger alerts or automated actions
• Data logging and analysis-Record vibration trends for predictive maintenance and process improvement
• Seamless integration-Compatible with a wide range of CNC lathes and bar feeder systems
• Enhanced part quality-Detects and mitigates vibration before it impacts surface finish or dimensional accuracy
• Reduced scrap rates-Prevents full-bar scrap by identifying problematic material early in the process.
• Extended machine life-Protects critical components by minimizing vibration-induced stress
• Increased efficiency-Automated corrections reduce operator intervention and increase uptime
• User-friendly interface-Simplified set-up and intuitive monitoring tools require minimal training.

More Than Just Vibration Detection

DTect-IT is not limited to bar feeder applications. As a powerful CNC sensor analysis platform, it supports a wide variety of sensor types-including vibration, strain, power, analog, and metrology inputs-giving manufacturers the ability to monitor, analyze, and react to a broad range of machining conditions in real time.

For more information contact:

Caron Engineering, Inc.

116 Willie Hill Rd.

Wells, ME 04090

207-646-6071

marketing@caroneng.com

www.caroneng.com
