Renishaw has launched its latest pioneering solution for shop floor process control: the Equator-X 500 dual-method system. This product allows users to select the optimum inspection method-Absolute or Compare-to address a variety of process challenges, effectively deploying two systems in one.
The Equator-X system is designed to address situations where product variety and frequent design changes require measurement systems capable of speed, flexibility, and ease of use to keep pace with machining capabilities. Key benefits include increased throughput, with high-speed measurement that increases inspection capacity; fully traceable in-process verification of parts on the shop floor, with continuous validation of the production process; and the flexibility to select the optimal measurement method for each application with a single device.
The optional Absolute or Compare measurement modes address the demands of fast-paced manufacturing environments with different requirements.
In Absolute mode, the Equator-X system measures parts at scanning speeds of up to 250 mm/s, significantly improving the inspection capacity and throughput for manufacturers of small to medium batch sizes and high part variety. This mode is particularly useful for first-off verification next to the machine or even at-line 100% inspection.
In Compare mode, the Equator-X system delivers a high scanning speed of up to 500 mm/s and is engineered for inspecting large batches of the same component when cycle time is a priority. It also provides a high-speed measurement option where varying thermal environments present a challenge.

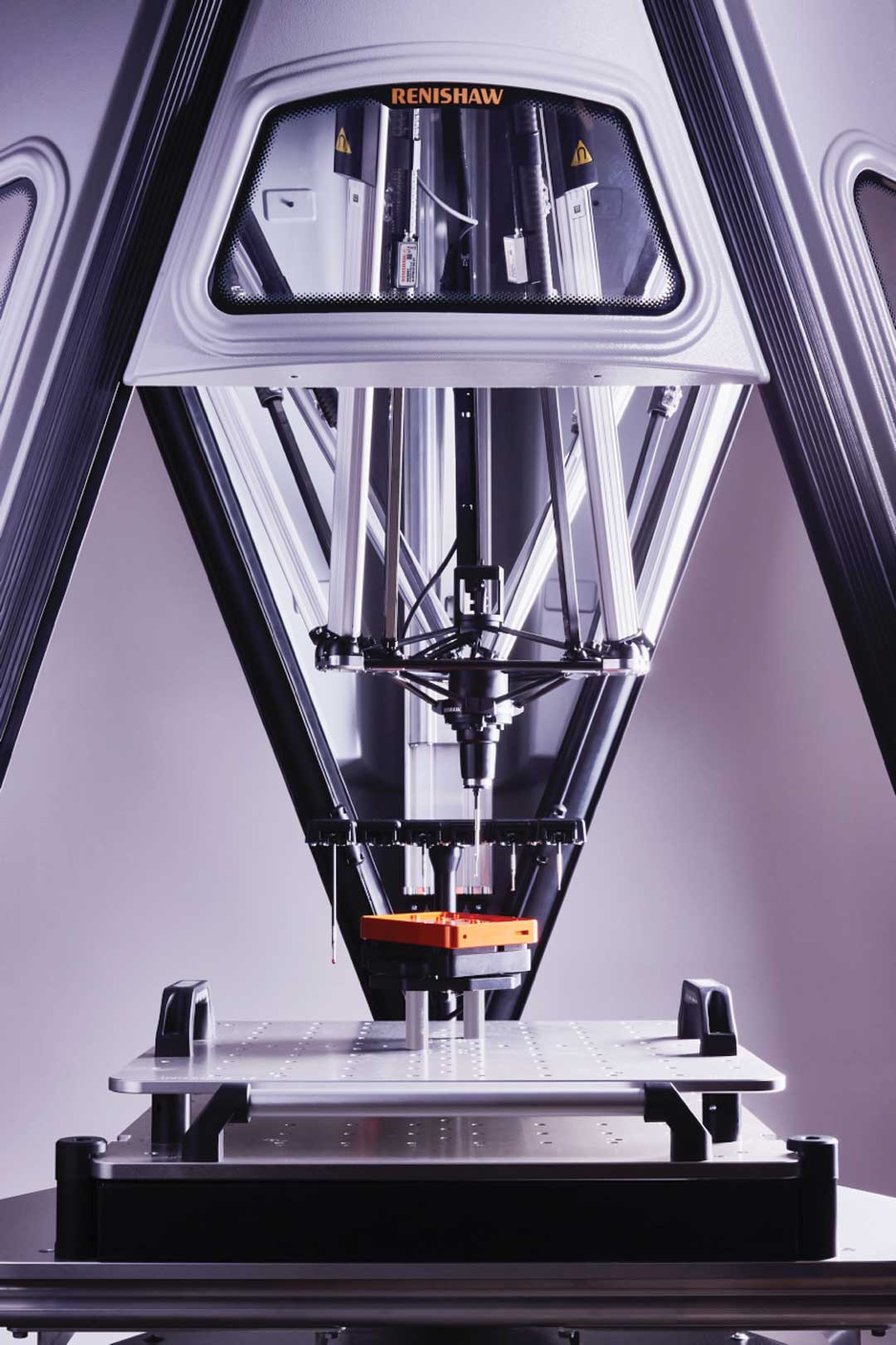

The Equator-X 500 gauge is a hexapod structure with independent drive and metrology frames. High-speed motion is achieved without compromising metrology due to design features such as carbon fiber metrology struts, linear motor drives, and the industry standard SP25M scanning probe.
The system can be deployed as a standalone shop floor device or integrated within a fully automated cell, offering increased flexibility to adapt to evolving demands and variable shop floor conditions.
The standard software platform for the new Equator-X 500 system features an intuitive and feature-rich operator interface coupled with Renishaw's latest MODUSTM IM metrology software applications.
"This comprehensive suite of software tools delivers outstanding convenience and robust performance for programming, reporting, and operation, simplifying complex tasks and enhancing user experience," said a company spokesperson.
