In quality assurance and production metrology, accuracy is rarely the only challenge. Engineers and system integrators must work within limited installation space, manage increasingly dense measuring rows, and adapt systems over time-often without the option of a complete redesign. At the same time, measurement performance is expected to remain stable across the entire measuring range, even in demanding production environments, while long lead times and inconsistent component availability continue to complicate system planning and commissioning.
These practical realities define how length gauges are selected and deployed today-and they form the foundation for the latest developments from NUMERIK JENA, a member of the HEIDENHAIN family of brands.

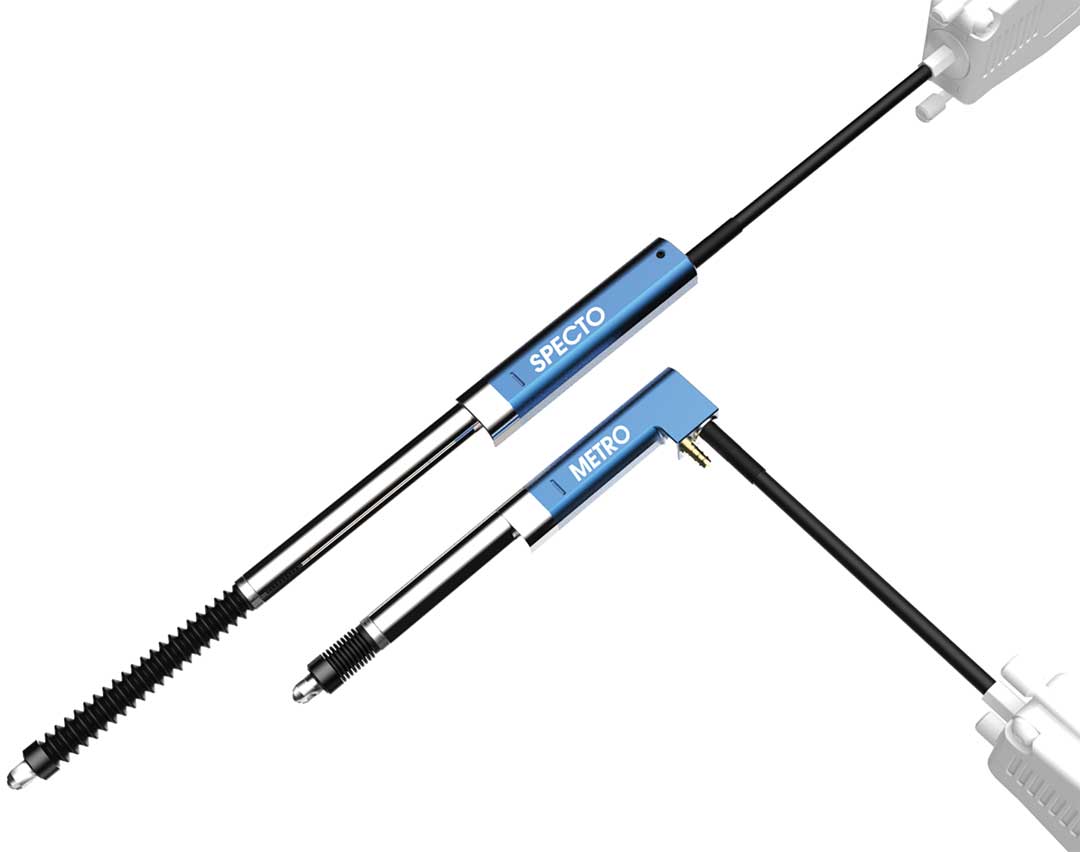

With its new generation of length gauges, NUMERIK JENA has redesigned, standardized, and further developed its SPECTO and METRO product families into a unified platform. This approach addresses a common customer challenge: managing multiple measurement requirements within a single system while maintaining mechanical compatibility and consistent performance.
By standardizing the platform while enabling different variants, users can integrate multiple length gauges within the same application. This reduces system complexity, simplifies mounting and alignment, and makes future system modifications easier-without compromising reliability or measurement quality.
Limited installation space is one of the most persistent issues in modern metrology systems. Compact machine designs and dense measuring arrangements leave little room for traditional length gauge solutions.
The new platform directly addresses this constraint through an ultra-slim form factor that reduces row width. This allows users to integrate a higher number of measuring points within confined spaces or design more compact systems overall. Importantly, this space-saving design does not come at the expense of robustness or accuracy across the measuring range.
In production and quality assurance environments, maintaining consistent measurement results over long operating periods is just as critical as initial accuracy. Signal instability, wear, or component variability can lead to rework, recalibration, or downtime.
"NUMERIK JENA's new platform reflects long-standing expertise in length gauge production, with development focused on durability, reproducibility, and long-term performance," said a company spokesperson. "Carefully coordinated components and a high proportion of in-house manufacturing help ensure consistent quality and longevity across the portfolio, supporting reliable operation in demanding applications."

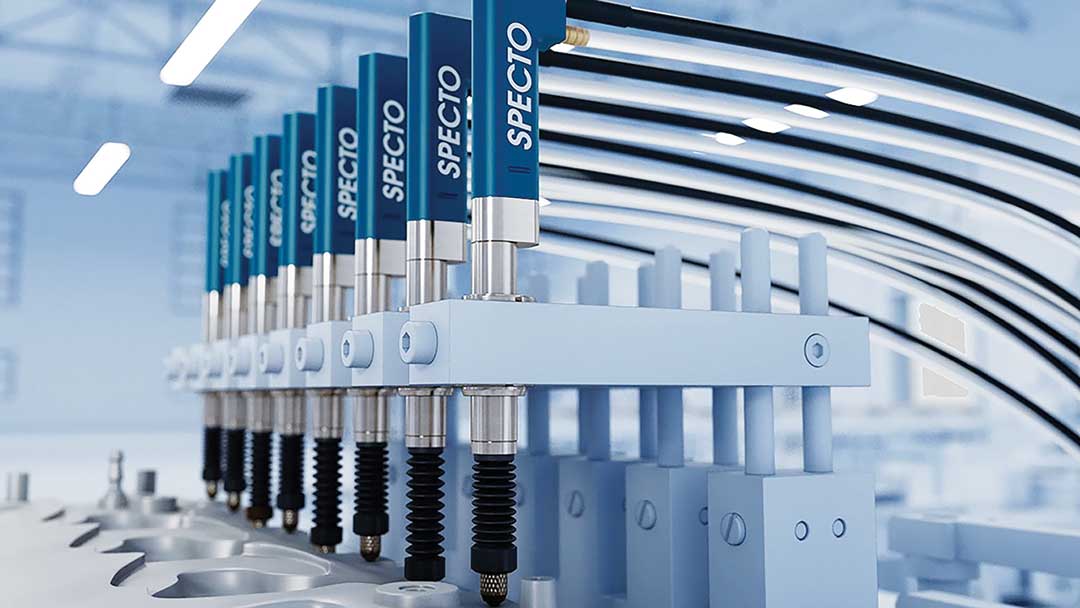

Within the new platform, the SPECTO length gauge family is designed for applications where robustness, minimal installation space, and fast availability are key requirements. Its ultra-slim design enables a greatly reduced row width, expanding its suitability for compact system layouts.
Durability is achieved through well-matched components and NUMERIK JENA's high level of internal manufacturing capability. In addition, smart production processes and in-stock availability of selected length gauges support short delivery times-helping users reduce project lead times and respond quickly to changing application demands.
The METRO length gauge family addresses applications where precise measurement results are required across the entire gauge length. A novel sensor layout, combined with a newly developed measuring standard, contributes to greater signal quality. Highly sophisticated electronics further support accurate and consistent measurement performance.
Like SPECTO, METRO features an ultra-slim design that results in a reduced row width, making it suitable for space-constrained or compact system environments. Robustness and longevity are also central characteristics, supported by coordinated components and extensive in-house production depth.
Across SPECTO and METRO product lines, the new length gauge generation provides a flexible foundation for measurement and positioning tasks. By combining a standardized platform with multiple variants and configurations, NUMERIK JENA enables users to adapt systems more easily as requirements change-while maintaining accuracy, robustness, and integration compatibility.
Rather than focusing on individual features in isolation, this platform is designed to solve the real challenges faced in modern metrology systems: limited space, evolving system requirements, consistent measurement performance, and the need for reliable availability. The result is a future-oriented length gauge solution that supports current applications and long-term system performance. In an environment where measurement systems are expected to evolve alongside increasingly complex applications, this approach provides a practical and dependable path forward.
Authored by HEIDENHAIN Corporation
