A re-engineered machine targeted at centerless grinding applications in the aerospace industry has been produced with the help of NUM CNC hardware and software.

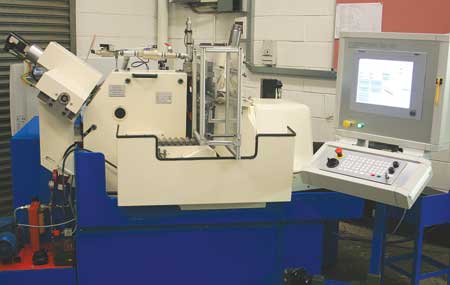

RefreshEng has launched a re-engineered centerless grinder, based on a widely used machine, with the aid of software development support from CNC vendor NUM. "Controlled by NUM's Flexium CNC kernel, the upgrade solution converts any of the veteran Cincinnati 2-OM family of centerless grinder machines to the same kind of automated and precision machining available on state-of-the-art grinders - but for an outlay that is some 60% lower than a new machine," said a company spokesperson.

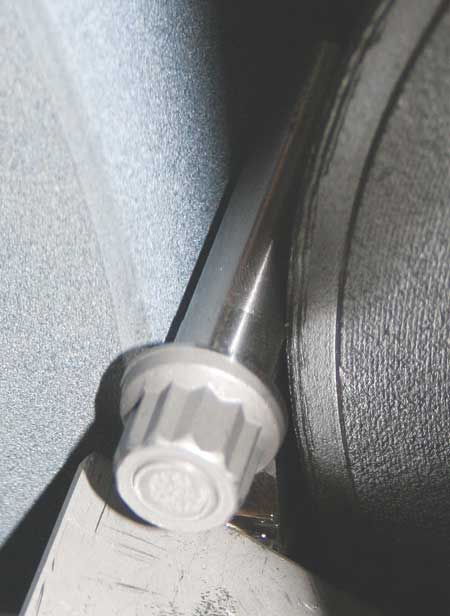

Initially, the new NUM CNC based machine is targeted at centerless grinding applications in the aerospace industry, and comes with application specific software to automate the production of the specialist countersink, button head and relief style fasteners used in aviation fuselage and engine production.
RefreshEng's CNC upgrade technology is offered in four variants, with a choice of three auto loading options. According to the company, the NUM-based upgrades transform the Cincinnati 2-OM's original hydraulic - and mechanical-dressing architecture with its fixed cam-and-stylus control - to an advanced CNC software-based system with up to seven axes of servomotor-based motion, depending on customer choices.
"RefreshEng incorporates numerous advanced features to optimize productivity, precision and operator safety," said the spokesperson. "These include acoustic sensors that automatically monitor and compensate for grinding wheel wear. The machine also uses the sensing system to dynamically adjust grinding wheel feedrate to provide gap elimination. This feature alone can reduce grinding cycle times by almost 20% across a batch of raw material parts with varying dimensions. Higher resolution control of movement and the ability to interpolate movement of motion axes improve grinding accuracy and extend the range of shapes that can be ground. The grinding wheel has been fitted with a Schmitt Balancing System, which dynamically eliminates vibration. Wheel speed can also be varied to suit different component materials. Another key feature is a choice of drop-, finger- or front-loading loaders to automate the range of common centerless grinding applications. The finger loader accepts a large variation in part size from 10 mm long x 3 mm diameter up to 200 x 25 mm.
"The idea for the project span out of RefreshEng's knowledge of the centerless grinding business, derived from its long established tooling services in the UK and Europe. Many of its clients wanted to re-control their old machines to an advanced level in order to increase throughput and eliminate manual operations, but had found it difficult to source the technical support for such work. RefreshEng recognized the opportunity, especially for the popular Cincinnati 2-OM, as it estimates there are still some 2,000 of these machines in the UK alone.
"Updating the mechanical architecture involved the complete replacement of hydraulics in favor of servomotor-controlled motion, with numerous modifications to the underlying framework, including new castings to mount the electro-mechanics. The key hurdle for RefreshEng's CEO Damian Clements was finding a CNC supplier that would be prepared to complement his company's know-how with high-level control system software skills. In order to make the project financially viable, RefreshEng also wanted the CNC supplier to defer the return on their development efforts until sales of the machine started to build. Previous good experience with NUM led Clements to discuss the project first with the CNC vendor's UK applications center.
"RefreshEng provided NUM's software developers with flow charts of the way it wanted the new machine to function so the control logic and operator interface software could be developed. The companies' engineers then worked together - often using Internet communications to link remotely to the prototype - to realize and test the new control system. Even though the type of custom human-machine interface (HMI) RefreshEng wanted was seemingly fresh to this type of machine, NUM's software developers completed the work quickly, within just three to four man-months. The open programmability of Flexium's man-machine interface, which is purposely designed to support customization, was the catalyst for this short design cycle. In addition to providing the control structure, NUM also utilized the HMI programmability of the Flexium platform to generate a distinctive look and feel for the re-engineered machine's control.

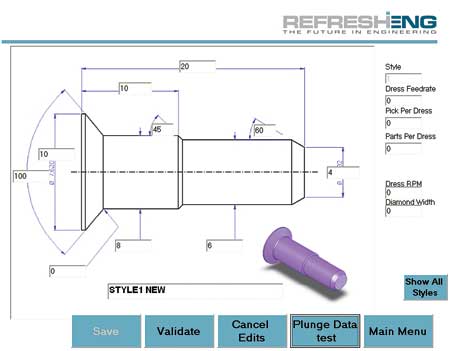

The first release of RefreshEng's software targets aerospace fastener production. NUM's operating software employs dialog boxes to simplify programming, allowing new grinding profiles to be created in less than a minute. The operator populates data fields on a sequence of screens, which include graphical representations of the fastener style selected, and the profile is automatically generated. Parts can then be produced automatically, with the machine's software also automatically performing housekeeping tasks such as dressing the wheel.

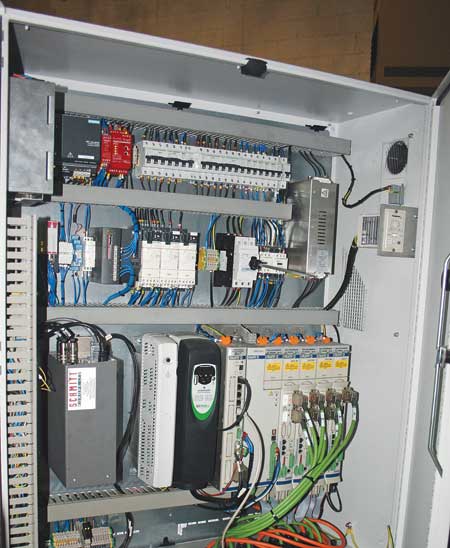

"The hardware upgrade is based on NUM's economic Flexium 68 CNC kernel, with an FS152i touch-screen HMI, machine panel with handwheel for operator programming and control, plus MDLU3 drives and BPX servomotors fitted with precision absolute encoders. The seven axes controlled by the CNC depending on the machine model are control wheel-infeed, -traverse and -rotation, dresser-infeed and -traverse, backstop and spindle lateral adjust."
"This project exemplifies the way NUM likes to work," said Steve Moore of NUM UK. "Because our business is built on helping small to medium sized machine builders to compete, we have invested in a decentralized R&D structure which locates engineering staff all around the world, and we are very willing to customize our CNC technology to support clients - as in the case of this innovative re-engineering project."
"The Flexium upgrade we have devised provides an economic CNC solution that brings the workhorse 2-OM range of machines back up to date in terms of precision, programming flexibility and automation - boosting productivity substantially," said Damian Clements, CEO of RefreshEng. "Capital investment cost is reduced by such a large margin compared with a new machine that payback can be as short as a few months - which is critical for many of the manufacturers in this highly competitive sector. The new machine also automates all aspects of the centerless grinding process, eliminating any need for manual interventions such as loading and hand finishing, to deliver a much higher level of safety."
