Fast and Flexible Parts Transfer

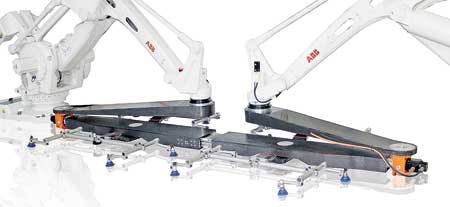

ABB Robotics has introduced the Twin Robot Xbar (TRX), a fast and flexible parts transfer system with an output rate of up to 16 parts per minute for big panels in tandem press lines. "The TRX can be retrofitted to existing press lines, setting it apart from similar systems that require additional space between the upright and bolster," said a company spokesperson.

"Utilizing two robots optimally distributes the total power and load while minimizing the inertia in demanding press automation applications," said the spokesperson. "With ABB's MultiMove technology a single robot cabinet controls all 10 TRX axes, comprised of two 4-axis robots plus two crossbar axes, simplifying programming without adding to the system footprint.

"The system can accommodate a wide range of crossbar types and lengths to assure the right fit for different line configurations. Crossbar changes for new production have been fully automated on the press bolster or at the inter-press."

"The TRX can tilt in three different axes and allows dynamic reconfiguration of part distance when moving double parts (side-shifting), eliminating the need for additional actuators," said Enrique Pano, Press Automation Manager, ABB Robotics, North America.

The TRX runs on StampWare, a proprietary software package from ABB designed to facilitate interaction between operator and press cell. Available on the robot FlexPendant, StampWare includes a graphical programming wizard that helps operators easily program the robots without having to master the programming language.

For more information contact:

ABB Robotics, Inc.

1250 Brown Road

Auburn Hills, MI 48326

248-391-9000

www.abb.com/robotics
