Micro Drill Analyzing Microscope

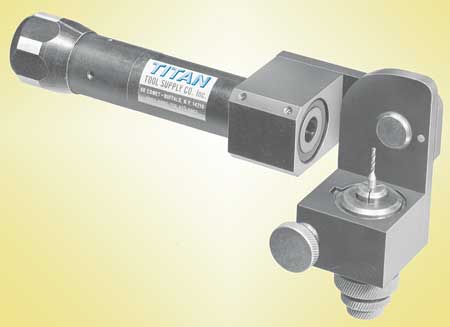

The Micro Drill Geometry Analyzer (MDGA) Microscope from Titan Tool Supply inspects the geometry, finish and accuracy of new and re-sharpened miniature carbide drills as small as 1/8" diameter.

Ideal for inspecting the quality of drills used in micro-manufacturing and micro-electronics, it provides a single-purpose, low-cost alternative to optical comparators and toolmakers microscopes, which entail a significant amount of set-up time, according to the company. Titan Tool's Model MDGA features a 30x magnification lens with a special reticle, two-position viewing and 360° rotation of the drill in a precision collets holder to allow for complete inspection without refocusing or other adjustments. A travel rack and pinion brings the drill into focus.

The MDGA analyzer enables the user to inspect:

• Point centrality
• Hook
• Back taper
• Point angle
• Primary relief angle
• Secondary relief angle
• Web taper and web thickness
• Chisel edge angle
• Lip height
• Cutting drill edge irregularities and drill irregularities
• Drill point finish
• Body-to-shank concentricity.

The MDGA was designed so that two different views in two different planes of the drill can be inspected without changing set-up. View one inspects the side of the drill, capturing all angles and most other adjustments. View two inspects the end of the drill to capture width, thicknesses, flare and other factors. The two different views are obtained by rotating the drill holding fixture 90° on its own axis.

The inspection tool measures 9-1/2" x 1-1/2" x 2" and weighs only 1 lb., 6 oz. It is equipped with two 4 mm diameter Allen head screws for mounting the microscope in a bracket holder, if desired. Shank drills smaller than 1/8" diameter can be inspected if a spacer (not provided) is used.

For more information contact:

Titan Tool Supply, Inc.

68 Comet Avenue

Buffalo, NY 14216

716-873-9907

info@titantoolsupply.com

www.titantoolsupply.com
