Multitasking Technology for Bar Work Machining

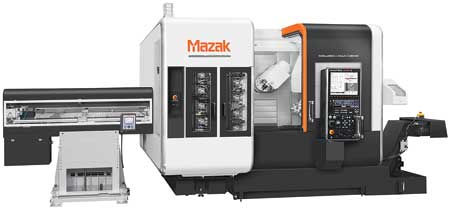

Mazak's compact INTEGREX i-100 BARTAC-S multitasking machine features two turning spindles and a milling spindle for full 5-axis machining and Done-In-One processing of small high-precision parts. The machine also features a large 4.4" spindle bore for enhanced efficiency in machining of bar material up to 4" in diameter.

"With the capability to handle all processes from raw material input through final machining, the INTEGREX i-100 BARTAC-S provides dramatic reductions in lead times and improves part accuracy through the elimination of multiple set-ups," said a company spokesperson. "Plus, its full 5-axis capability makes it possible to easily process fully prismatic parts from solid block or castings, round parts or highly contoured sculptured parts." The 5-axis software for this machine is available as optional equipment.

The main spindle on the INTEGREX i-100 BARTAC-S employs a 15 HP integral motor spindle with maximum spindle speeds of 2,000 RPM. For high-precision C-axis contouring, the main spindle indexes in 0.0001° increments, while the 15 HP, 6,000 RPM second spindle provides increments of 0.001°. The main spindle features an 8" chuck with a 4.4" bore size that can process bar stock up to 4" in diameter, while the second spindle has a 6" chuck and 2.4" bore size.

An Intelligent Bar Loader System automatically feeds out the material the required distance from the chuck and minimizes the bar remnant. Furthermore, an optional chuck pressure management system automatically changes by part program for a wide variety of workpieces. It maintains not only the set chuck pressure per workpiece, but also the same pressure when changing material.

The INTEGREX i-100 BARTAC-S has a 10 HP, 12,000 RPM milling spindle mounted in the rotating B-axis with a range of 240° in 0.0001° indexing increments. And for high accuracy of motion, B-axis scale feedback comes standard on the machine.

The machine comes standard equipped with a 36-tool magazine that accommodates tools up to 5.1" in diameter when neighboring stations are empty and up to 3.5" in diameter when stations are occupied. For further tooling versatility, the machine also has a 72-tool magazine option as well as an automatic tool changer (ATC) that can exchange both fixed and rotary turning tools.

For off-centerline operations, the INTEGREX i-100 BARTAC-S provides axes travels of 8.2" in Y, 17.7" with a below centerline capability of 1.96" in X and 35.5" in Z, thereby allowing the machine to process a wide range of part sizes and shapes. Furthermore, the machine's three linear axes attain high-speed rapid traverse rates of 1,575 IPM (40 m/min).

The INTEGREX i-100 BARTAC-S features Mazak's MATRIX 2 CNC control. Within the control are both enhanced hardware and software functionalities that are designed to make the control easy to use while also delivering high accuracy and increased productivity. Control hardware performance is faster with higher processing speeds for small increment operation. Furthermore, a 5-axis spline interpolation function included in the control's software provides smooth toolpaths from long block-by-block programs, easy tool vector control and shorter cycle times as well as enhanced surface finishes, according to the company.

"Designed for convenient system installation, the INTEGREX i-100 BARTAC-S requires minimal floor space when compared to conventional equipment with gantry loader or robot systems with a footprint of 127 inches x 98 inches," said the spokesperson. "Furthermore, for those manufacturers seeking lights-out operations, the machine pairs with an optional integrated work unloader and conveyor that cost effectively handles completed workpieces from the second spindle."
