Absolute Linear Encoder with Expanded Interface
April 1, 2014

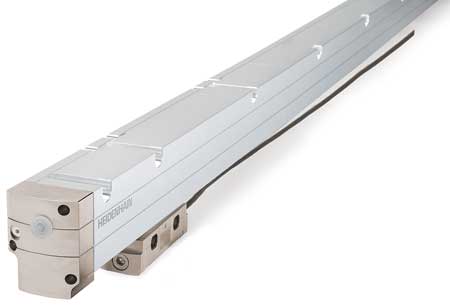

HEIDENHAIN's LC 200 linear encoder for linear measurement is desigened for long machine tool axes. Now available with a Mitsubishi interface, this encoder is increasing its available interface options.
An absolute type encoder, the LC 200 measures lengths of up to 28 meters. The absolute position value is available immediately upon switch on. "And due to the design and use of a smaller scanning unit with increased rigidity in measuring direction, the LC 200 is especially useful in high speed machining applications using linear motors," said a company spokesperson.
The LC 200 is assembled on a machine from individual components. The housing sections feature an improved mounting and sealing technology. An integrated seal on the face and a tongue and groove system make it possible to slide the housing sections together with ease. Large mounting tolerances facilitate easy assembly of the entire system.
System accuracy for the LC 200 is +/- 5 um. It is also available with HEIDENHAIN's EnDat and FANUC's interfaces.
For more information contact:
HEIDENHAIN Corporation
333 E. State Parkway
Schaumburg, IL 60173-5337
847-490-1191
info@heidenhain.com
www.heidenhain.us
