Acme Threading Inserts
November 1, 2015

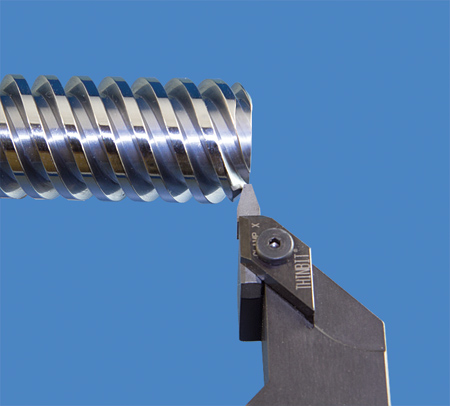

THINBIT, manufactured by Kaiser Tool Company, has announced the expansion of its GROOVE ‘N TURN line with ACME THREADING inserts.
ACME THREADING inserts are designed to cut thread sizes 4, 5, 6, 8, 10, 12, 14 and 16 threads per inch. Tools have geometry to cut standard 29° acme thread profiles. Inserts can be used to cut centralizing or stub profiles by overcutting. The inserts can be used for internal acme threads on parts with bore diameters of 1.250" and larger.
Available in sub-micron grain carbide grades for ferrous and non-ferrous materials either uncoated or with TiN, TiCN, TiAIN or diamond film coatings. GROOVE ‘N TURN ACME THREADING inserts can be used on conventional, Swiss and CNC machines.
Toolholders are available in square shank size 5/16" through 1-1/4" and round shank sizes 1/2" through 1" with straight and 90° presentations. GROOVE ‘N TURN ACME THREADING inserts fit existing "L" series THINBIT toolholders.
THINBIT offers a selection of 60° thread forms for both internal and external threading. Custom thread profiles with deliveries from five working days are available.
For more information contact:
Kaiser Tool Company, Inc.
3620 Centennial Drive
Fort Wayne, IN 46808
888-844-6248
thinbit@kaisertool.com
www.thinbit.com
