New Drill Features Multi-Purpose Geometry

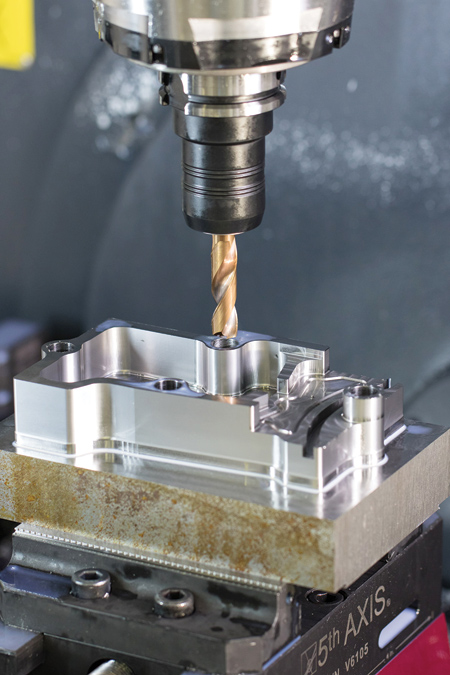

Developed with optimum performance and value in mind, the new Universal Drill from Niagara Cutter will soon be available. "The solid carbide drill combines a special multi-purpose geometry with advanced coating technology to provide reliable, predictable tool life and the lowest cost per hole, especially in high-volume production environments," said a company spokesperson.

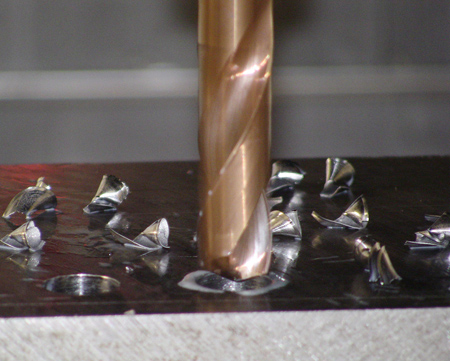

"The Universal Drill's rigid four-facet point geometry provides excellent centering capability, maintains an IT8/9 hole tolerance and is easy to regrind. A polished AlCrN coating gives the drill high abrasion resistance, toughness and good chip evacuation capabilities," said the spokesperson.

The new drill is designed for holemaking applications across all industry segments and a wide scope of workpiece materials, including steels, stainless steels and cast irons.

Available drill diameter sizes range from 3 mm to 20 mm with increments of 0.1 mm. For efficient chip evacuation, the 5 x D and 3 x D length drills with cylindrical shanks offer the option of through-tool coolant capability. All Universal Drills are compatible with Seco shrinkfit holders, hydraulic chucks and high-precision collet chucks.

For more information contact:

Niagara Cutter, LLC

150 South Fifth Street

P.O. Box 279

Reynoldsville, PA 15851-0279

800-861-6111 / 814-653-8211

www.niagaracutter.com
