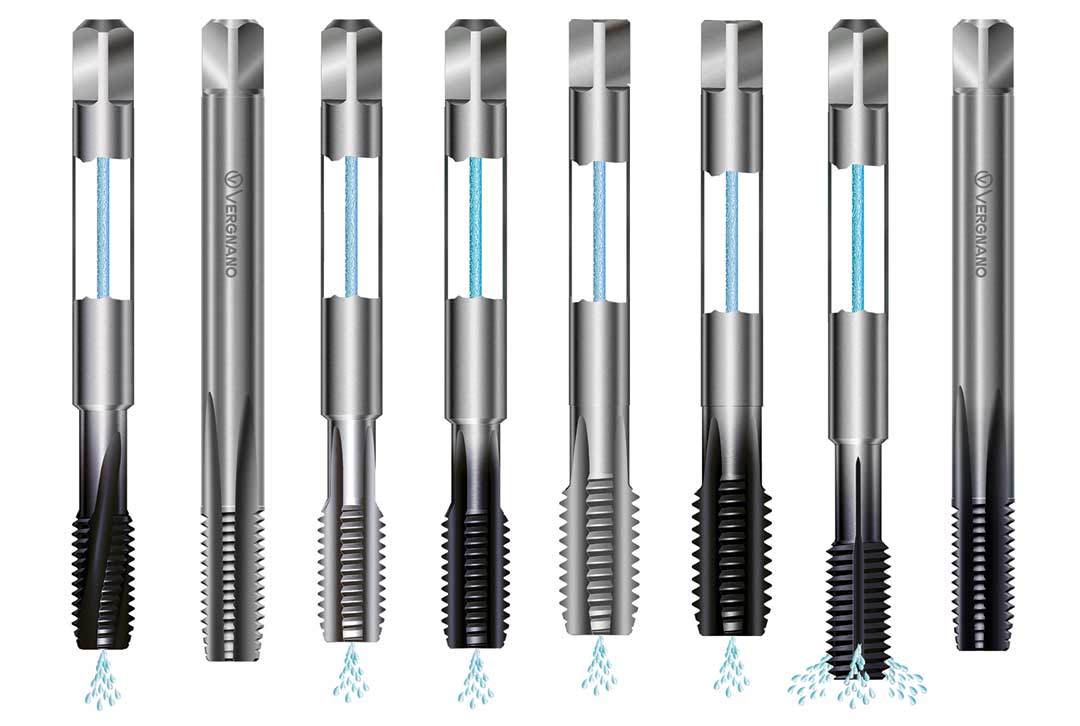

Monaghan Tooling Group offers Vergnano H Series Solid Carbide Taps, which are designed to provide high-performance tapping capabilities for demanding materials such as hardened steel, nonferrous metals, superalloys, and more.
Manufactured from micrograin carbide and engineered with advanced geometries and coatings, Series H taps are available from 3 mm to 16 mm (.118" to .63"), for blind hole and through-hole applications. Six tap families are purpose built for a specific combination of hole type, thread form, and material group. All are engineered to provide increased tool life, process reliability, and thread quality.
"Vergnano H-Series High Performance Machine Taps allow increased speed while maintaining tight tolerances and ensuring the structural integrity of the critical components," said a company spokesperson. "Versions are available to create blind holes and through holes with speed, precision, and reliability, making them ideal for critical applications within automotive, aerospace, heavy equipment, agriculture, and general applications."
HB29 is a general-purpose cutting tap for 3 mm to 10 mm (0.118" to .394") blind holes in medium to long chipping material like cast iron, aluminum, and aluminum alloys.
HB43 and HB45 are high-performance machine taps with through coolant for 3 mm to 16 mm (0.118" to .63") blind hole tapping applications in short chipping material like cast iron and cast aluminum.
HB80 is a cold forming tap with oil grooves for 3 mm to 10 mm (0.118" to .394") blind holes or through holes for chip free threading in alloy steels and other difficult materials.
HB81 is a fine pitch cold forming tap with oil grooves for 8 mm to 16 mm (0.315" to .63") blind holes or through holes for mild and stainless steels, aluminum and aluminum alloys, and nickel and nickel alloys.
H130 is a cold forming tap for 3 mm to 12 mm (0.118" to .472") blind holes or through holes for medium chipping materials like hardened steel.
For more information contact:
Monaghan Tooling Group
30 North Clinton St.
Dayton, OH 45402
800-732-4565
sales@monaghantooling.com
www.monaghantooling.com/vergnano
