Automatic Optical Surface Inspection in One Pass
August 1, 2016

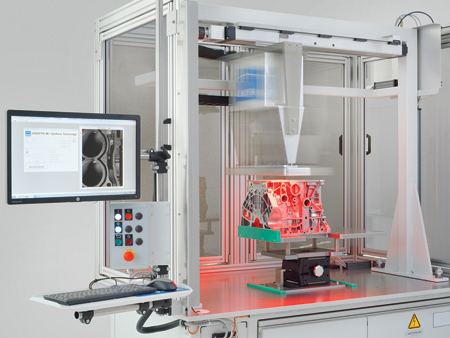

Jenoptik Automotive will introduce the IPS 400 for rapid optical surface inspection of flat machined surfaces. In seconds, the system provides a map of critical surfaces of such machined parts as crankcases, cylinder heads and valve bodies - critical production parts where surface condition is essential to effective sealing and economical function.
The system detects common surface defects including burrs, pores, hit marks and scratches on machined surfaces using Jenoptik's optical technology. The system generates the surface image while in motion at high traverse speeds. The inspection area is 400 mm wide and 800 mm long. High speed scanning - three seconds over 500 mm - provides for short inspection cycles and immediate evaluation of part surface condition, alerting management to product quality and manufacturing process capability.
Utilizing CMOS imaging technology, the IPS 400 continuously scans the part surface at high speed, creating a viewable image of the entire machined surface.
Also from Jenoptik, the IPS 100 bore inspection sensor system provides rapid single pass automatic surface inspection of bores in a 360° panoramic view. The sensor permits detention of surface defects such as blowholes, scratches, porosities and more on bores from 75 mm to 110 mm diameter, to any depth. Typical applications include engine blocks, transmission cases, connecting rods, steering gear cases and cylinder liners.
For more information contact:
JENOPTIK Automotive North America, LLC
1505 W. Hamlin Road
Rochester Hills, MI 48309
248-853-5888
christon.manzella@jenoptik.us
www.jenoptik.us
IMTS 2016 Booth E-5536
