Runout Compensation Nuts for Correcting Runout Errors

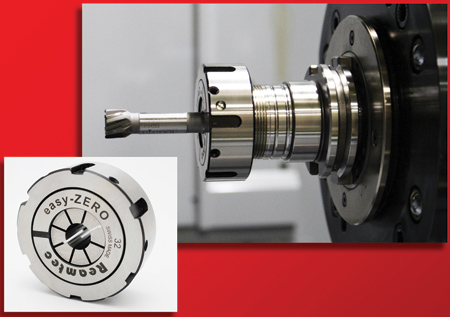

easyZERO runout compensation nuts from Monaghan Tooling Group can correct runout errors and misalignment for round tools using ER collets and will be featured at IMTS. These replacement nuts feature six adjustment screws that allow for up to 0.011" (0.279 mm) runout to be dialed in, allowing for more accurate machining, tighter tolerances and better surface finishes - especially on difficult parts. Concentric cutting means that all cutting edges equally share the chip load, thus increasing tool life and lowering tool costs. "Rapidly dialing in the desired runout with complete control ultimately saves time and increases process capability, due to decreased time tapping and resetting tools and collets," said a company spokesperson.

ReamTec easyZERO compensation nuts are available from Monaghan Tooling Group in five sizes to fit ER16 to ER40 collets. They are designed for round tools where runout may be of concern, including reamers, drills and end mills. Four kits are available which include the easyZERO nut, Hex Key, spanner and ER collet in various combinations.

For more information contact:

Monaghan Tooling Group

30 North Clinton Street

Dayton, OH 45402

800-732-4565

sales@monaghantooling.com

www.monaghantooling.com

IMTS 2016 Booth W-1292
