Reversible Hard Jaws for I.D. and O.D. Workholding

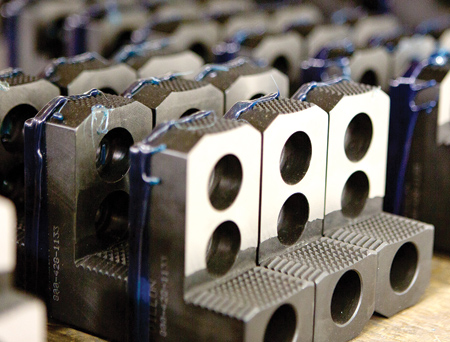

Reversible hard jaws from Dillon Manufacturing, Inc., which are suitable for I.D. and O.D. workholding, can decrease the time and cost of tool set-ups, yet still accurately grip and locate workpieces.

The jaws are designed to hold a specific range of part sizes and are usually used for first operation workholding. They are available in serrated, Acme Key, square key and tongue-and-groove styles to fit a variety of chucks. These single or two-step jaws feature diamond shaped serrations that help provide accurate gripping and parts locating.

These jaws are manufactured from 8620 steel, case hardened, with ground locating surfaces and black oxide coated for corrosion resistance. Dillon also offers custom made special or modified hard jaws.

For more information contact:

Joseph Shouvlin

Dillon Manufacturing, Inc.

2115 Progress Drive

Springfield, OH 45505

800-428-1133

sales4@dillonmfg.com

www.dillonmfg.com

IMTS 2016 Booth W-2168
