Air Flow Amplifiers with No Moving Parts

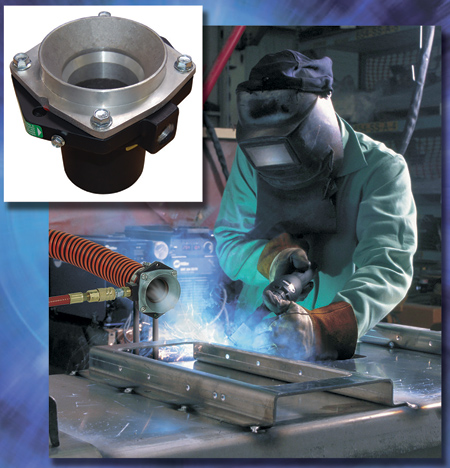

Vortec Air Flow Amplifiers extract smoke, fumes and debris to enhance safety, ergonomics and productivity. These high flow, bladeless blowers take ordinary compressed air and amplify it up to 60-fold, in un-ducted applications, with no moving parts. They are easily mounted, ducted and moved, and with adjustable airflow and output they can be tailored to the project at hand. With no electrical requirements they can be mounted wherever there is compressed air, and their quiet operation meets OSHA noise requirements.

Vortec Air Flow Amplifiers are available in multiple sizes, in either aluminum or stainless steel, to deliver flow rates from 32 to 2,300 SCFM. In addition to ventilating and exhausting welding fumes, soldering and machine smoke, tank fumes and other gases, they are suitable for removal of metal chips, sawdust and scrap, or conveying of plastic pellets, small parts and more.

Vortec Air Flow Amplifiers can adapt from extraction and ventilation of fumes and gases to blow-off applications, such as drying of parts, cooling of moldings, castings and food products. "They can improve the quality through better weight sorting of parts and other light materials. Their dual function capability enhances their utility in industrial and commercial environments," said a company spokesperson.

For more information contact:

Vortec - ITW Air Management

10125 Carver Rd.

Cincinnati, OH 45242

800-441-7475

sales@vortec.com

www.vortec.com
