Face Mill Productivity with Two New Insert Cartridges
May 1, 2015

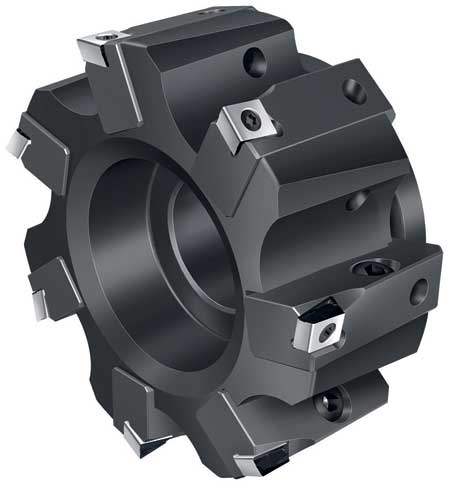

Adjustable F2010 face mill can now be equipped with Walter BLAXX indexable inserts.

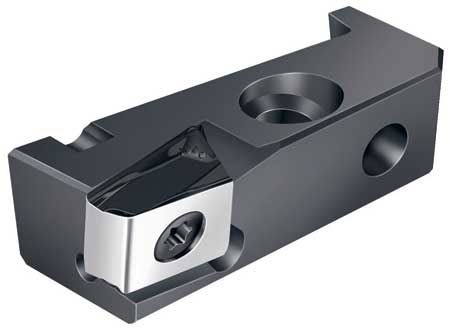

New FR751M cartridge provides added performance to Walter BLAXX indexable inserts.
Walter has introduced two new indexable insert cartridges for the Walter F2010 face mill. These new cartridges, the FR751M and FR752M, bring the flexibility and performance of Walter BLAXX tangential indexable inserts to the Walter F2010 face mill. "The family of indexable milling tools, characterized by precision and reliability, includes shoulder, helical and slitting mills," said a company spokesperson.
"Due to the high level of accuracy of its precision ground inserts with its Tiger-tec-Silver cutting material, together with high precision tool bodies, users of Walter BLAXX milling tools can achieve feedrate increases of up to 30% and often no longer require a separate finishing tool."
The FR751M and FR752M cartridges bring numerous benefits. For instance, the Walter BLAXX shoulder mill produces precise, almost step-free 90° shoulders. That system is only available for tool diameters up to 6.30 in. (160 mm). The F2010 face mill, equipped with the FR751M or FR752M cartridge, can now bring this technology up to a diameter of 12.40 in. (315 mm). In addition, the F2010 can now be used for fine finishing because the indexable inserts can be adjusted axially with micrometer precision.
These inserts come in two geometry variants: the L55T, a universal geometry that can be used on most materials, and the L85T, which has a particularly sharp cutting edge for machining aluminum.
For more information contact:
Walter USA, LLC
N22 W23855 Ridgeview Pkwy. West
Waukesha, WI 53188
800-945-5554
www.walter-tools.com/us
