New Software for Control Makes it Easier to Program

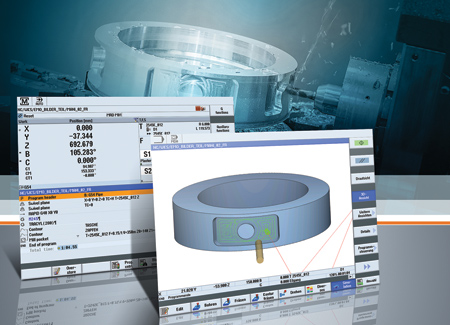

In the latest software version 4.7 of the Sinumerik Operate graphical user interface, Siemens has improved multitasking with machine tools in order to allow the complete machining of even highly complex workpieces.

In the latest software version 4.7 of the Sinumerik Operate graphical user interface, Siemens has improved multitasking with machine tools. Sinumerik Operate and the Sinumerik 840D sl CNC combine several machining technologies such as turning, milling and drilling, as well as workpiece and tool measurement on one machine. "This guarantees the complete machining of highly complex workpieces such as those found in the aerospace industry," said a company spokesperson.

"With its cross-technology, standardized and intuitive look-and-feel, Sinumerik Operate supports the machine tool user in everyday tasks," said the spokesperson. Sinumerik Operate version 4.7 comprises, among others, extended set-up and manual modes (JOG), which now interactively support the user when setting up mill-turn machines. There is also a new measurement function for turning tools, in which the setting screen automatically changes depending upon the tool type to be measured. In addition, workpiece measurement has been improved - now enabling the user to easily check and specify the workpiece zero.

In addition, Siemens has simplified the approach of turning tools in tool set-up mode (TSM): when the user selects a turning tool, the machine automatically switches to turning mode.

Tool management has also been extended in Sinumerik Operate version 4.7. The display shows every tool for the technologies used on the multitasking machine. With the redefinition of a tool, turning and complex tools such as multi-tools are now represented as icons. This simplifies the operation and is an advantage, for example, during complete machining processes where the user can view the tool and magazine data for milling and turning tools in one display.

With new functions for flexible programming through programGuide and shopfloor-compatible programming with ShopMill/ShopTurn, Siemens is simplifying multitasking machining. For example, the Cycle800 swivel cycle now combines turning and milling technologies in one user interface. The Cycle952 contour turning cycle permits 4-axis stock removal on multi-channel turning machines. In programGuide turning cycles, a graphical contour calculator supports machine tool users during data input and guides them through the parameter setting via a dialog. In ShopTurn, tools are now interactively programmed, and milling is now possible on turning machines.

The Sinumerik Operate graphical user interface for the Siemens CNC supports all machining procedures offered on multitasking machines across all technologies.

For example, serial part production and job shops can machine workpieces efficiently in one clamping. Apart from the most frequently used turning, milling and drilling technologies, along with measurement functions, a number of additional production technologies can be implemented on a customer-specific basis. These include grinding, gear hobbing and hob grinding, laser, electron-beam and plasma welding, eroding, laser and waterjet cutting, nibbling, honing and shaping.

Sinumerik Operate makes multitasking machining possible for every technology. Tool management supports the respective milling and turning tool types in every field of application. NC programming with DIN/ISO and cycles is possible in programGuide or graphically in ShopMill/ShopTurn. In addition, Sinumerik Operate offers workpiece simulation, both for turn-milling and for mill-turning.
