All-Digital, Servo-Stroke Honing



Horizontal SH-4000 machine introduces servo-precise, digitally repeatable performance.

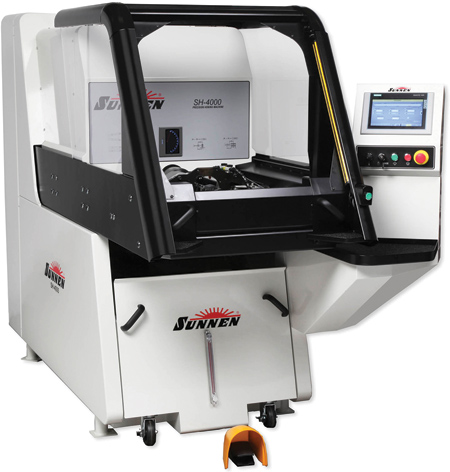

Sunnen's new SH-4000 power-stroked honing machine merges a Siemens touchscreen PLC and digital-servo drives with a patent pending servo-hybrid tool feed system, repeatability and clear adjustable guard/light curtain for faster, operator-friendly setups. The SH-4000 is engineered as an easy-to-use, flexible hone for medium to high production of parts with bore diameters from 1.5 to 101.6 mm (0.060" - 4.0"). It is capable of processing a wide variety of part sizes and configurations, and cutting all kinds of materials quickly and efficiently. It features a 4.1 kW (5 HP) spindle drive and 1.1 kW (1.5 HP) stroker drive, with stroke travel up to 392 mm (15.43 in). Spindle speed is infinitely adjustable from 200 to 3,000 RPM, with stroke rates of 10 to 550 SPM.

With 45% fewer parts and greater reliability than predecessor models, the SH-4000 introduces patent-pending digital-servo tool feed and cutting pressure control for consistent, predictable performance throughout the pressure range. Cutting pressure can be adjusted in 4.5 N (1 lbf) increments to a new maximum of 2,224 N (500 lbf) - double the maximum of earlier models. "The digital system provides superior feed control at low pressures for improved honing results with small-diameter parts," said a company spokesperson. "The higher cutting pressure, plus two-step honing capability, ensures short cycle times. Two-step honing allows high stock removal coupled with a precise finish step, all in one operation. In addition, the new tool feed system includes 20 mm (0.79") additional travel for increased diameter range when using high-production MMT tooling."

"The new servo ballscrew stroker delivers extreme precision and repeatability for honing in blind bores, while a longer stroke length of 392 mm (15.43") allows the new machine to take on deeper bores. For fastest setup, the machine's stroking system can be controlled with a joystick on the operator station", said the spokesperson.

The SH-4000 can use all the same tooling and fixturing as predecessor EC and ML machines, and a new true-running spindle with direct collet connection allows quick setup or changeover with MMT tooling. A quick-setting runout-adjustable adapter allows installation of standard Sunnen tooling, such as K mandrels. Side access to the workzone enhances operator ergonomics during setup and facilitates integration with part-handling automation.

The Siemens 225-mm (9-inch) touchscreen control features infinite part program storage and intuitive setup and run screens to allow inexperienced operators to run the machine as efficiently as a veteran. A new digital honing indicator is user-configurable. Standard control features include saved setups, zero shutoff, stone wear compensation, feed speed regulation (stone saver), two-step feed, spindle reverse, speed changes while in cycle, inch/metric selectable units, system diagnostics, cycle dwell, in-process short stroking and 13 operator languages.

The SH-4000 adapts to floor space limitations with an electrical cabinet that can be specified on the rear or either side of the machine. Free space in the enclosure is provided for integrating automation components.

The standard coolant system is nearly 70% larger than earlier models at 208 liters (55 gal.). Designed for easy maintenance, it is equipped with quick-disconnect lines, and removes from the front on casters. It includes a level gauge and filter status indicator with standard PF filter cartridge. A magnetic separator is optional.

Other standard features on the SH-4000 include an integrated tray for parts/gauges, standard tooling adapter, an electric foot pedal for set-up and truing of mandrels, a mandrel runout indicator and a universal honing fixture. Options include a precision collet spindle, automatic size-control unit, anti-glazing/cycle time control, long fixture support bars and more.

The SH-4000 complies with U.S. and European safety requirements.
