Clean Machine Tool Coolants Without Stopping Production



The Eriez HydroFlow SumpDoc is an all-in-one portable fluid recycling system that completely filters and rejuvenates metalworking fluids in a machine tool sump without interrupting production. "By eliminating downtime and saving costs through re-use of fluids, SumpDoc provides a more economical alternative to a central fluid recycling system or batch processing," said a company spokesperson.

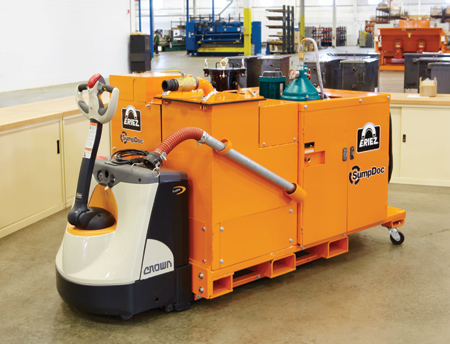

SumpDoc is integrated with the Crown WP 3000 series "Walkie" pallet truck, making it easy to move the unit from sump to sump or building to building. With the industrial battery and built-in charger, the 24-volt Crown unit moves SumpDoc anywhere for up to 300 amp hours of operation.

The main features of SumpDoc include a sump cleaner (sump vac) for removal of all sludge and solids 50 micron and larger, pleated bag filter and housing for removal of solids down to 10 micron, continuous flow tramp oil coalesce and high speed centrifuge for removal of emulsified tramp oil and fines down to three to five micron. Other features include ozone generator for microbiological treatment of coolants, coolant makeup system with proportioner and electrical controls with touchscreen dashboard.

Onboard storage containers include coolant concentrate/chemical tank and tramp oil and centrifuge backwash tanks. All tanks include discharge or cleanout pumps for ease of dispensing or removing content through the simple touchscreen controls on the dashboard.

For more information contact:

Eriez Manufacturing Co.

2200 Asbury Road

Erie, PA 16506

888-300-ERIEZ (3743)

814-835-6000

eriez@eriez.com

www.eriez.com
