Spindle and Slide Repair Combination



Gilman Precision, manufacturer of customized linear and rotary motion systems, offers repair service for both spindle and slide systems. A properly working spindle or slide is an essential part of operations for many companies internationally. Binsfeld Engineering of Michigan required repair of both components from Gilman Precision.

"There are times that we use our spindle at least eight hours a day, every day, weeks on end," said Randy Pattison, of Binsfeld Engineering. "Our initial problem was excessive vibration and noise from the spindle. We sent it in to Gilman and had them analyze it. They correctly analyzed the problem and gave us a quote. We offered them the opportunity to repair it, which they did in a timely manner and returned it to us promptly. We were very pleased with their service."

Many spindles and slides are used in this way, operating for many hours, sometimes even seven days a week. This ongoing use, as well as environmental factors such as dirt, machining chips and condensation, can contribute to the failure of the spindle or slide. At this point, Gilman uses expert resources to accurately identify the problem, assess the module, repair and provide Quality Assurance testing documentation.

"It is very important that the customer supply as much up front information as possible so that an accurate evaluation can be completed as quickly as possible," Weiland said. "Such information includes rotational speed, failure mode, usage, prints and motor data, if applicable and not shown on a name plate."

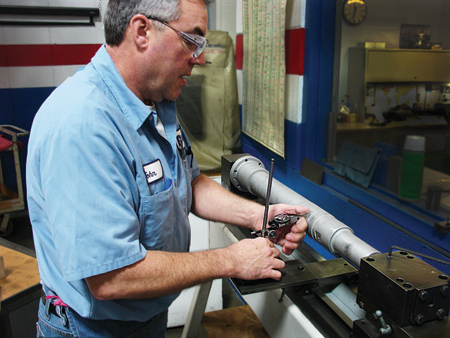

Once Gilman has used this information to diagnose the problem, the machine is repaired. The slides are deburred to remove the sharp edges and bearing tape before reassembly. The process of spindle repair can include such steps as welding, chroming, turning and grinding. Before shipping a slide or spindle back to a customer, Gilman will test and carefully inspect the item, checking for things such as lift, overall height and top to bottom parallelism, to ensure everything is working properly and efficiently.

Spindles and slides are often paired in machinery, so it can be beneficial to repair both components at once. Gilman Precision offers repair service of both parts in its shop, and the end result is a customer receiving all around system efficiency.

Gilman Precision develops customized slides and spindles for engineers with specific needs and standards; and provides service for any manufacturer's equipment.

For more information contact:

Douglas Biggs

Gilman Precision

1230 Cheyenne Ave.

Grafton, WI 53024

800-445-6267 / 262-377-2434

sales@gilmanprecision.com

www.gilmanprecision.com
