Standard and Custom Stepped Hard Jaws

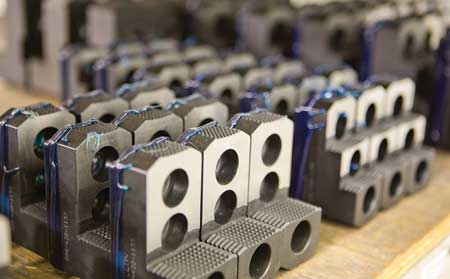

Dillon manufactures a full line of standard and custom stepped hard jaws with a diamond serration pattern for greater gripping of the workpiece. Typically used for first operation work, these jaws feature a gripping surface that accurately contacts most of the workpiece length and diameter for maximum drive. Diamond shaped serrations increase the holding power, especially for rough, irregular and out-of-round components, reducing part slippage and pushback. All standard (catalog) hard jaws are produced using 8620 steel to provide a tougher core, then carbonized and hardened to Rc 52-55 for greater durability and corrosion resistance. Dillon special top jaws are ideal for rough cast, forged, irregularly shaped, thin walled or extra-long workpieces which require special attention and handling.

Custom top jaws, manufactured to customer specification, center the workpiece and grip it equally. Extra wide jaws are available for a wider gripping surface. Dillon engineers work with customers to supply jaws that meet particular design and production requirements. Approval prints are supplied for each custom jaw order, and certification of materials and process, and heat treating are available upon request.

All Dillon hard stepped jaws are available in various mounting configurations including serrated, T&G, Acme and square serrated key types to fit all brands of chucks. With multiple radii for both inside and outside clamping, they are ideal for any size run.

Dillon also produces rough and semi-finished jaws for machinists. Various processes help reduce the amount of machining required by parts makers. This, combined with quick turnaround times, saves time and money by reducing down time.

Dillon Chuck Jaws offers a variety of standard and custom workholding solutions manufacturing a complete line of standard and custom chuck jaws, chucks, vises jaws, soft jaws, hard jaws, collet pad jaw systems, chuck lubrication and more. Dillon Jaws support a wide variety of industries including aerospace, agriculture, automotive, consumers, coal, oil and gas, construction, machine tools, mining, paper, rail and wind energy.

All products are made in the USA and Dillon is ISO 9000:2008 registered.

For more information contact:

Joseph Shouvlin

Dillon Manufacturing, Inc.

2115 Progress Drive

Springfield, OH 45505

800-428-1133

sales4@dillonmfg.com

www.dillonmfg.com
