Combination Horizontal/Vertical Spindle Machining Center

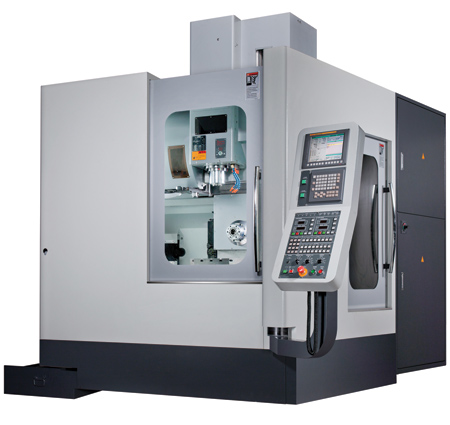

Kent CNC offers the new Kent CNC KHV-400 combination horizontal/vertical machining center with the 0i-MD control by FANUC. This Meehanite certified machine allows for 5-sided machining in one set-up for fast production and accuracy, all in a compact floor space of 82" x 114".

"By combining a horizontal machining center with a vertical machining center, this versatile machining center allows for faster set-ups and parts loading and unloading, improved accuracy, floor space maximization and capital investment reduction," said a company spokesperson.

The KHV-400 includes a 10 HP (horizontal)/15 HP (vertical), 10,000 RPM (opt. 12,000) spindle with direct drive spindle motor as standard.

Both the horizontal and vertical travels are 19.7"/19.7"/17.8" XYZ with fast two-set 24-tool ATC. In addition, the rapid traverse for each axis is 36 m/min and upgradeable up to 48 m/min. The rotary table is equipped with an optical scale.

For more information contact:

Kent Industrial USA

1231 Edinger Ave.

Tustin, CA 92780

714-258-8526

info@kentusa.com

www.kentusa.com
