HMC Purpose-Built for Fast Die Cast Parts Production

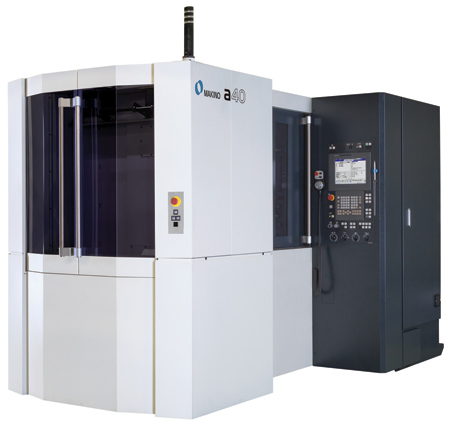

Makino has introduced the a40, a horizontal machining center (HMC) purpose-built for non-ferrous die cast parts machining.

"Until now, machine tool selection for the die cast market has been limited to general-purpose horizontals that possess unnecessary capabilities and result in extended cycle times in the machining of near net shape die cast parts," said a company spokesperson. "The a40 addresses the unique needs of the die cast market by enhancing machine attributes most critical to improving productivity and per-piece costs in the machining of near net shape die-cast aluminum parts."

"Die cast manufacturers are under intense pricing pressure with mandatory cost reductions from OEMs and increasing global competition," said David Ward, Horizontal Product Line Manager for Makino. "The keys to overcoming these challenges lie in the reduction of machining cycle time and elimination of unplanned down time. To address the cycle time issue, Makino has re-evaluated each of the major castings using an Intelligent Reduction of Inertia (R.O.I) design philosophy. The new design provides superior linear and radial agility and acceleration."

The a40 offers a 400 mm pallet with a workpiece capacity of 630 mm (24.8") in diameter by 900 mm (35.4") tall, making it an ideal platform for die cast parts commonly machined in the automotive and consumer product industries. Axis travels are 560 mm (22.0"), 640 mm (25.2") and 640 mm (25.2") in the X, Y and Z planes, respectively. Maximum payload is 400 kg (880 lbs). The a40 also offers features and capabilities for improved utilization and reductions in non-cut time, including a 40-position automatic tool changer and an automatic pallet change system to ensure uninterrupted operation.

Makino's Intelligent R.O.I.

Makino's Intelligent R.O.I. design is a collection of innovative technologies designed to reduce unproductive non-cut times from part processes. The spokesperson noted that through this unique design strategy, the a40 is able to provide:

  • Responsive CAT40 spindle acceleration to 12,000 RPM in 0.5 seconds
  • Quick completion of common tapping operations with 6,000 RPM rigid tapping synchronization speed
  • An average of 29% faster time to full rapid traverse rate, minimizing common feature-to-feature positioning time
  • Optimal acceleration performance of multiple machine systems with evaluation of fixture and tool weights through Inertia Active Control (IAC) technology.

Proven Reliability

"Unplanned down time is devastating to high-volume die cast production machining," said the spokesperson. "As such, the reliability of the machining system is paramount. The a40 utilizes several of the robust systems from Makino's 1-Series HMCs. Systems like single-piece X- and Z-axis covers, center trough chip and coolant management and dual supported ATC mechanisms provide exceptional reliability throughout the life of the machine. The a40 leverages these proven technologies, but then advances reliability with a host of new systems."

These new systems include:

  • Standard vision-type broken tool detection supports unattended operation by quickly validating the condition of the cutting tools after each tool change.
  • Dedicated tool taper cleaning nozzles wash the tool taper with 20µ filtered coolant with each tool change, providing contamination-free tool clamping.
  • Three-stage coolant filtration with 20µ hydro-cyclone is designed to eliminate coolant tank sludge common with aluminum machining, extending time between coolant system PM or cleaning.

Makino Engineering Services and Automation Solutions

"For many die cast part manufacturing facilities, machining is a secondary capability that demands specialized labor skillsets and expertise," said the spokesperson. "Machine shops seeking to maximize the productive benefits of the a40 can turn to Makino for engineering support that maximizes the productive capabilities of their machine investment."

The spokesperson reported that Makino Engineering Services creates robust production-ready processes - including machinery, fixtures, tools, programs and documentation - for parts with complex geometries, demanding deadlines, challenging budget constraints and Six Sigma standards. "While many North American manufacturers face difficulty finding skilled labor, Makino Engineering Services has experienced engineers and project managers that can manage every step of a project with single-point contact, project engineering, on-site supervision and post-installation training and support," continued the spokesperson. "Hundreds of manufacturers in need of integrated flexible manufacturing solutions have taken advantage of these services, each benefiting from guaranteed cycle times, Cpk and cost per part that meet or exceed their production goals."

With Makino automation integration services, the spokesperson noted that manufacturers are able to combat fierce pricing pressures from low-labor-cost countries by providing complete automated cells and systems. "Whether demands call for simple machine tending or complex high-volume robotic cells, Makino's automation integration services offer the equipment, skills and manpower necessary to reduce labor costs, increase throughput, ensure and enhance part quality, all while retaining the flexibility to adapt quickly to changing volumes or new parts," said the spokesperson.

To learn more about Makino Engineering Services and automation solutions for the a40, visit www.makino.com/engineering-services.
