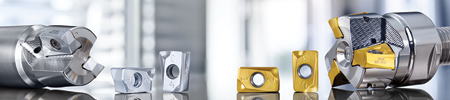

Double Turbo Square Shoulder Mills and Inserts

"For manufacturers who struggle to achieve superior part surface finishes without high machine power consumption, Seco Tools has expanded its line of square shoulder milling cutters with the new Double Turbo," said a company spokesperson. "The cutters improve roughing operations and reduce power consumption in steel, stainless steels, cast iron and high-temperature alloys with an advanced cutter geometry. For the highest level of productivity, the tools utilize double-sided inserts with four cutting edges and state-of-the-art Seco Tools milling grades."

The Double Turbo is designed to meet the needs of both job shops and mass production facilities. "This system features a highly accurate geometry with the most positive helix angle possible to reduce the likelihood of surface mismatches and enable 90° angle accuracy," said the spokesperson. "With such precision, finishing cycle times are significantly shortened or, in some cases, completely eliminated."

Double Turbo cutters are available in 19 metric variants ranging from diameter 40 mm to 125 mm and 16 inch variants ranging from 1.50" to 5".

The ZOMX16 inserts have high, positive geometries for effective chip evacuation and reduced cutting forces. These features minimize vibrations for extended tool life and smooth surface finishes. The double-sided design provides cost-per-edge savings. The ZOMX16 inserts include two geometries, ME10 and M12, and two radii, 0.8 and 1.6. Both PVD and Duratomic CVD grades are available.

"The Double Turbo square shoulder cutter design uses materials and resources with greater efficiency, resulting in a reduction of greenhouse gas emission for a more sustainable and responsible choice," said the spokesperson.

For more information contact:

Seco Tools LLC

2805 Bellingham Drive

Troy, MI 48083
