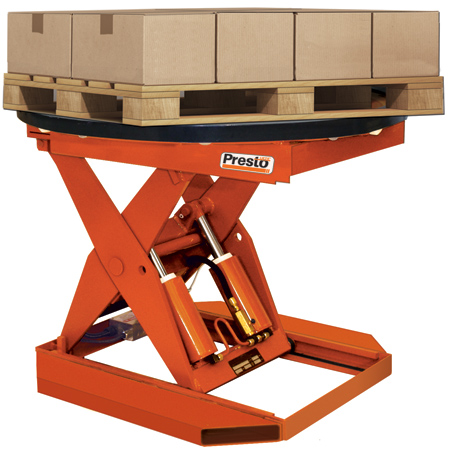

Pallet Leveler with Operator Controlled Height Adjustment



The P3 Operator Controlled Load Leveler from Presto ECOA Lifts is designed to increase productivity and improve worker safety in manual pallet loading and unloading operations. The unit can be raised or lowered at the touch of button to position the top layer of boxes at the most comfortable, easy-to-access height. It is suitable for use when precise load positioning is required or when load weights, pallet sizes or product dimensions vary greatly and frequently.

The P3 Operator Controlled Load Leveler's platform has an integrated turntable that sits on anti-friction bearings, allowing users to spin the load so they are always loading and unloading from the same spot with no need to reach across or walk around the pallet. The unit's base is equipped with fork pockets that provide enhanced stability-no lagging required-and allow it to be easily moved to a different location with a forklift or stacker.

Two models are available with 2,000 lb. or 4,000 lb. capacities. Both units operate on standard 115V power. A 1 HP motor operates hydraulic cylinders that raise or lower the platform from a height of 9-1/2" to 27-3/4". Lifting and lowering is controlled via a footswitch or hand pendant.

In addition to the standard configuration, P3 Operator Controlled units can be furnished with a variety of options including phenolic or solid steel disc covers, square or rectangular solid tops, bellows accordion skirting, one-touch auto leveling, an access step and special finishes including special paint colors, chemical resistant coatings, two-part epoxies, hot-dipped galvanizing and stainless steel construction.

For more information contact:

Presto ECOA Lifts:

50 Commerce Way

Norton, MA 02766

800-343-9322

info@prestolifts.com

www.prestolifts.com
