6-Axis Tool Grinder with Options for Grinding Solid Carbide Boring Bars



Full radius boring bar

Standard boring bar

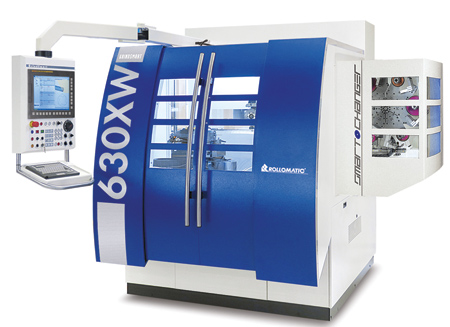

GrindSmart 630XW 6-axis grinder with automatic loader and 6-station wheel/nozzle changer

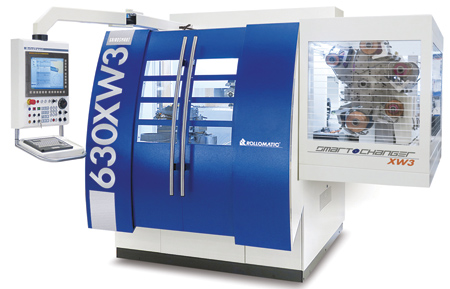

GrindSmart 630XW 6-axis grinder with automatic loader and 16-station wheel/nozzle changer

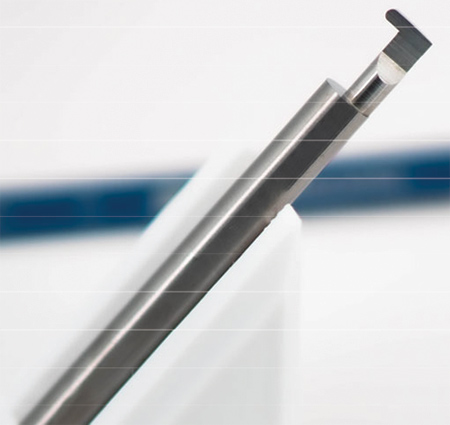

Reverse boring bar

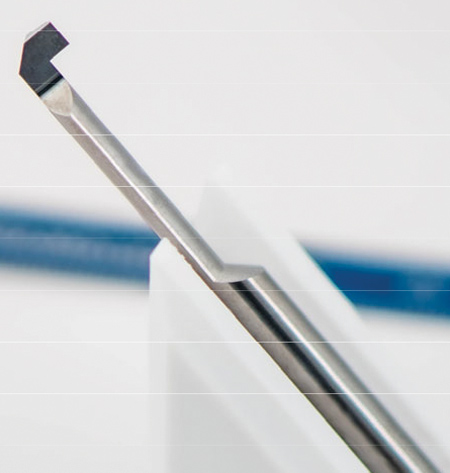

Retaining ring tool

Reverse boring bar

Full radius boring bar

Standard boring bar with corner radius

Rollomatic offers the GrindSmart model 630XW with new capabilities relating to the production grinding of solid carbide boring bars and other stationary cutting tools.

"Boring bar grinding on the Rollomatic 6-axis tool grinding machines offers exceptional flexibility in comparison to conventional single-purpose grinders," said a company spokesperson. "With its six fully interpolating CNC axes and a six-station wheel/nozzle changer, the machine can easily be adapted for individual boring bar designs, both for short and long runs. The compact and versatile design allows full interchangeability between boring bars, inserts and round tools."

The following operations can be performed on the GrindSmart series in one operation including flipping the tool:

  • Profile grinding
  • Grinding of rake face
  • Grinding of coolant flat
  • Grinding of neck
  • Other brand-dependent features.

While the machine is able to grind any large-size boring bar, its capabilities extend to miniature turning tools, boring, threading, grooving and facing tools. According to the company, both right hand/left hand and ahead/behind center can be produced with equal ease. Rake angles can be ground in two planes. Additionally, quick-change features can also be added to the grinding operations.

"Compared to dedicated insert grinders, the GrindSmart 6-axis series together with the wheel/nozzle changer offer high flexibility for grinding a variety of boring bars and other stationary cutting tools while maintaining the ability to switch over to round shank tools within minutes," said the spokesperson.

Features and benefit include:

  • Radius contour accuracy due to mechanical and software features, as low as .0001" (2 microns)
  • Pick & place robot so that the tools do not get damaged after grinding
  • Wheel and nozzle changers with six or 16 positions. Each wheel pack can accommodate up to four wheels.
  • In-process rotary dressing or automatic sticking device available
  • Linear motion control on CNC axes
  • Desktop tool design software with 3D tool simulation and 3D machine animation with collision warning; high level of functionality, speed, freedom in tool design and user-friendliness.
