Shaping Attachment Enables Single-Step Machining of Complex Features
November 1, 2014

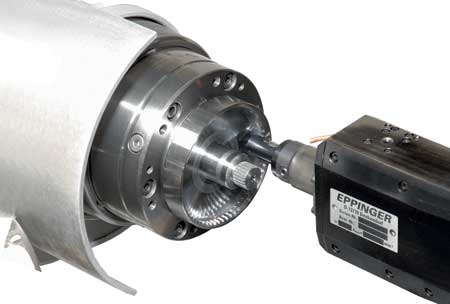

The EPPINGER Shaping Attachment from EXSYS Tool, Inc. is designed to enable single-step machining of a wide variety of difficult-to-cut features including grooves, chamfers, Torx screw heads, splines and gear teeth. In addition, permanent grease lubrication of the attachment's bearing surfaces helps reduce wear and tear on the machine tools that employ the device.
The Shaping Attachment is engineered for productive and efficient operation. In use, it drives the cutter into the workpiece in the Z-axis at cutting speeds up to 1,000 strokes per minute. At the end of each stroke an integrated lift-off mechanism returns the cutter to the starting position without drag, protecting the surface finish of the component and the cutting edge of the tool. With a working stroke of 1.3" (32 mm) and maximum feed of 0.006" (0.15 mm) per stroke, the attachment can produce maximum groove widths of 0.31" - 0.34" (8 - 10 mm).
"The Shaping Attachment's capability to machine difficult features in a single set-up increases production throughput, while its permanent lubrication, lift-off mechanism and rigidity minimize machine tool wear and downtime that can result from performing tough gearmaking-type operations," said a company spokeperson.
For more information contact:
EXSYS Tool, Inc.
11654 Corporate Lake Blvd.
San Antonio, FL 33576
800-397-9748
info@exsys-tool.com
www.exsys-tool.com
