Flexible Vacuum Gripping Systems for Automation
November 1, 2014

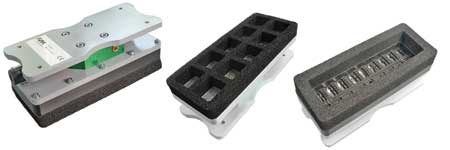

FIPA Inc. offers a range of easy-to-handle vacuum gripping systems designed to fit a variety of needs, including the handling of palettes, cardboard, wooden panels or packaging. FIPA design engineers are also available to develop customized systems.
Featuring a large flow cross-section, the vacuum grippers in the TC series are suited for dust-intensive processes such as handling cardboard. The integrated valves close unused vacuum openings, thus enabling the handling of individual products or layers without switching grippers and without loss of gripping force.
The vacuum grippers of the TL series offer economical gripper technology for low dust handling processes. Additionally, this series of grippers is also suited for swinging and tipping movements up to 360°.
The FIPA TG series bag gripper is made for handling ductile, bag-like packaging or shrink-wrap packaging. This allows for handling of packaged products such as flour, rice or animal foods. A large suction chamber that is not sensitive to dust and dirt provides for handling in high-dust environments.
"All FIPA vacuum grippers and bag grippers offer simple and residue-free suction mat replacements," said a company spokesperson. "When placed between the gripper and workpiece, these suction mats provide gentle handling and great vacuum distribution. This vacuum distribution occurs through high-performance ejectors, or externally through the side channel blower.
"Our pick-up and release system for the vacuum gripper allow for fast and efficient cycle times. The suction is built up in the vacuum tube as it approaches the workpiece, which makes it available immediately upon contact. This allows for a strong, quick suction. The vacuum tube and blower are vented at the same time, allowing for accurate and efficient placement. Another benefit of this system is that the compressor is not constantly being powered by the vacuum, which reduces overall power consumption and extends the service life of the system."
For more information contact:
FIPA Inc.
1855 Evans Road
Cary, NC 27513
919-651-9888
sales.us@fipa.com
www.fipa.com
